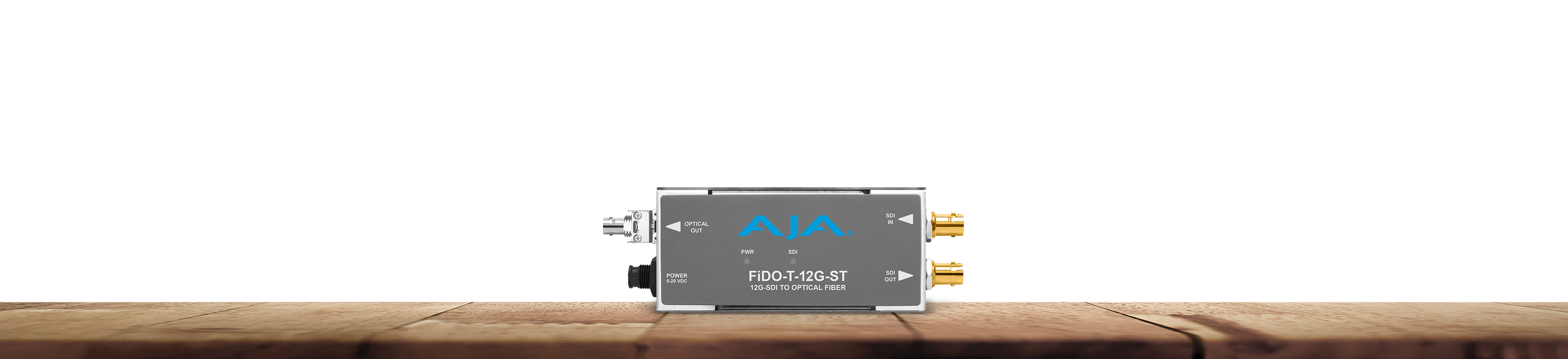

FiDO-T-12G-ST

FiDO-T-12G-ST

1-Channel 12G-SDI to Single Mode
ST Fiber Transmitter

$1135 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

FiDO-T-12G-ST offers unmatched flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single mode fiber optic cable. The FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production and mobile environments.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:

  • 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter
  • Simplex connection (ST connector)
  • 12G-SDI input, which also supports 12G/6G/3G/HD/SD-SDI
  • Reclocked loop through of SDI input
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

12G-SDI from Camera to Fiber, Edit and More

Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate, and deep color content over a single cable.

Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM Muxer/Demuxer, FS-HDR converter/frame synchronizer, and Io 4K Plus Thunderbolt™ 3 equipped audio and video I/O device with 12G-SDI support.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

  • 270 Mbps - 12 Gbps, format agnostic

Video Input Digital

  • 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082

Video Output Digital

  • 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082
  • 1-channel 12G-SDI Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
  • Optical Power: -5 dBm (Min), 2 dBm (Max)
  • Extinction Ratio: 3.5 (Min)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)

Weight

  • 0.4 lb (0.2 kg)

Power

  • 2 watts, max
  • Uses 5-20VDC power, AJA power supply model DWP-U-R1 included

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
