KONA / Corvid – Mac and PC System Configurations

The AJA support and engineering team target only Enterprise Class Workstations. The slot placement is based on an engineering analysis of the motherboard for performance and available bandwidth. These are the required 4K/UltraHD/2K/HD workflow configurations for the KONA and Corvid product lines.

*Device did not show up in the system
**Device did not perform to its specifications

Apple Mac Pro M2

Mac Pro M2 14,8
M2 Ultra 24 Core
64Gb RAM

macOS Version 13.2
AJA Retail Software v.17.0


Slot 7 - Gen4 x4 (B) GPU
Slot 6 - Gen4 x8 (A) (**Corvid 88/KONA 5)
Slot 5 - Gen4 x8 (A) (**Corvid 88/KONA 5)
Slot 4 - Gen4 x8 (A) (**Corvid 88/KONA 5)
Slot 3 - Gen4 x8 (A) (**Corvid 88/KONA 5)
Slot 2 - Gen4 x16 (A) (**Corvid 88/KONA 5)
Slot 1 - Gen4 x16 (A) (**Corvid 88/KONA 5)

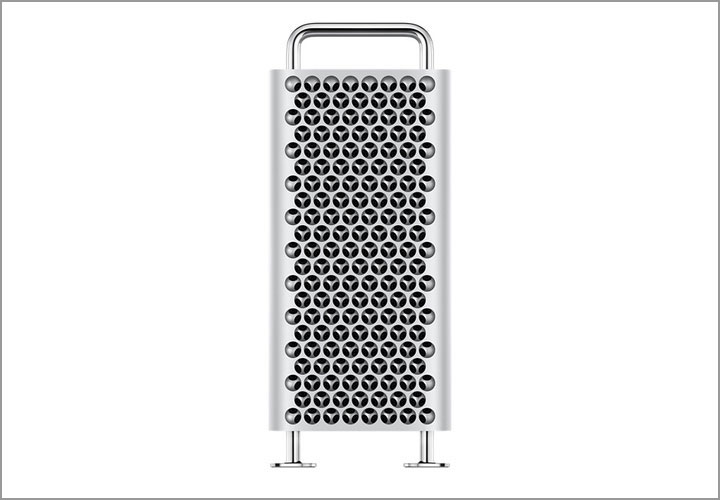

Apple Mac Pro

Mac Pro 7, 1
3.2 GHz 16/32 Core
32Gb RAM
AMD Radeon Pro 580X

macOS Version 13.2
AJA Retail Software v.17.0

Slot 1 - GPU
Slot 2 - Covered
Slot 3 - (*KONA LHe+)
Slot 4 - (*KONA LHe+)
Slot 5 / After Burner
Slot 6 - (*KONA LHi/LHe+)
Slot 7 - (*KONA LHi/LHe+/HDMI)

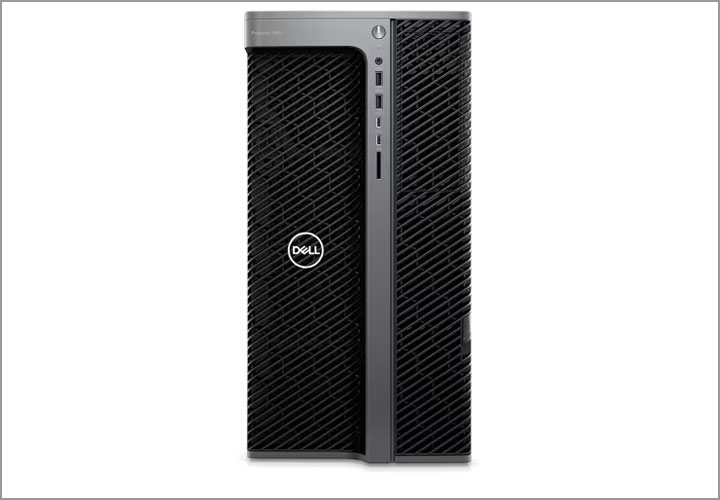

Dell T7960

W9-3455x 2.5 GHz 24/48 Core
64GB RAM
Nvidia RTX A4000

AJA Retail Software v.17.0

Slot 8 - Gen4 x16 GPU
Slot 7 - Gen4 x8
Slot 6 - Gen4 x8
Slot 5 - Gen5 x16 (*KONA LHi/LHe+)
Slot 1 - Gen4 x16 (*KONA LHi/LHe+)
Slot 2 - Gen4 x4
Slot 3 - Gen4 x4
Slot 4 - Gen4 x16

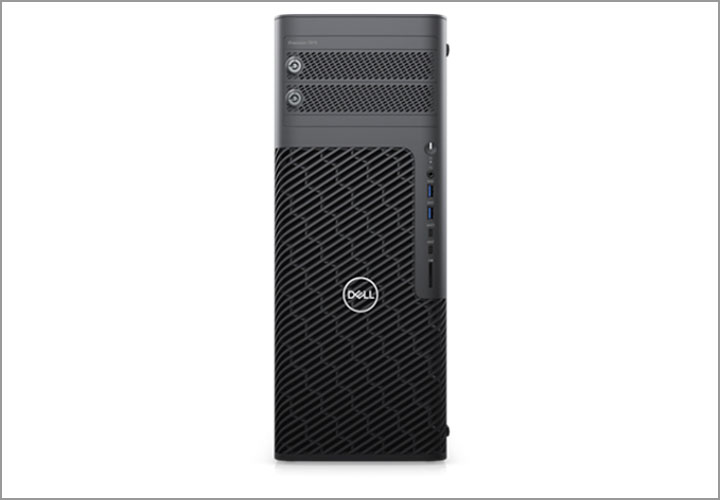

Dell T7875

Threadripper 7965 4.2Ghz 24/48 Core
128GB Ram
Nvidia RTX A4000

AJA Retail Softwarev.17.0

Slot 1 – Gen5 x8
Slot 2 – Gen5 x16 GPU
Slot 3 - Gen4 x4 (*Lhi/LHe+)
Slot 4 - Gen4 x8 (*Kona5/HDMI/Lhi/LHe+)
Slot 5 - Gen4 x16 (*Lhi/LHe+)
Slot 6 - Gen4 x8 (*Lhi/LHe+)

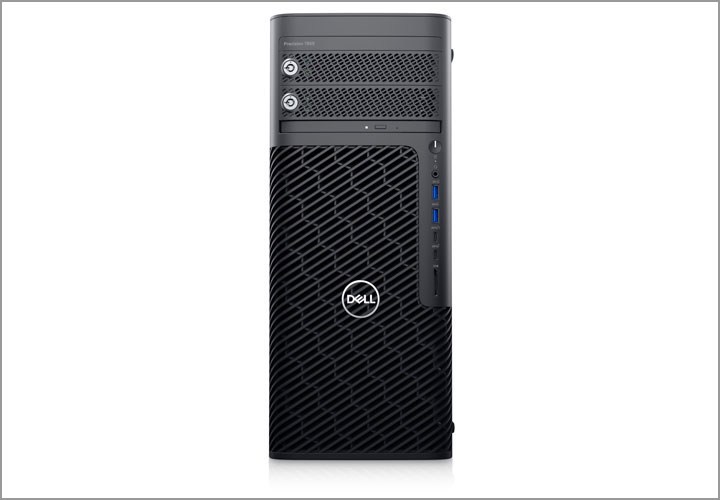

Dell T7865

Threadripper 5995 GHz 64/128 Core
128GB RAM
Nvidia RTX A4000

AJA Retail Software v.17.0

Slot 1 - Gen4 x16 GPU
Slot 2 - Gen4 x8 (*LHi/LHe+)
Slot 3 - Gen4 x8 (*LHi/LHe+)
Slot 4 - Gen4 x16 (*LHi/LHe+)
Slot 5 - Gen4 x8 (*LHi/LHe+)

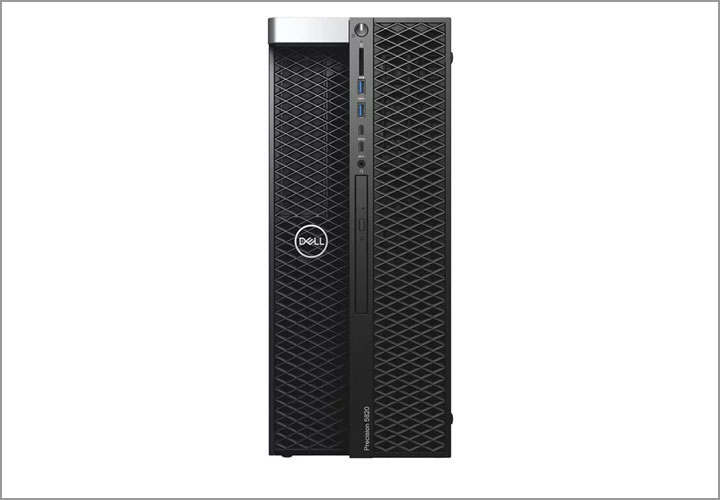

Dell T5860

W5-2955x 3.19 GHz
32GB RAM
Nvidia T400

AJA Retail Software v.17.0

Slot 1 - Gen4 x16 GPU
Slot 2 - Gen4 x8 (*KONA LHi/LHe+/X)
Slot 3 - Gen4 x4 (*KONA LHi/LHe+)
Slot 4 - Gen4 x16 (*KONA LHi/LHe+)
Slot 5 - Gen4 x8 (*KONA LHi/LHe+)

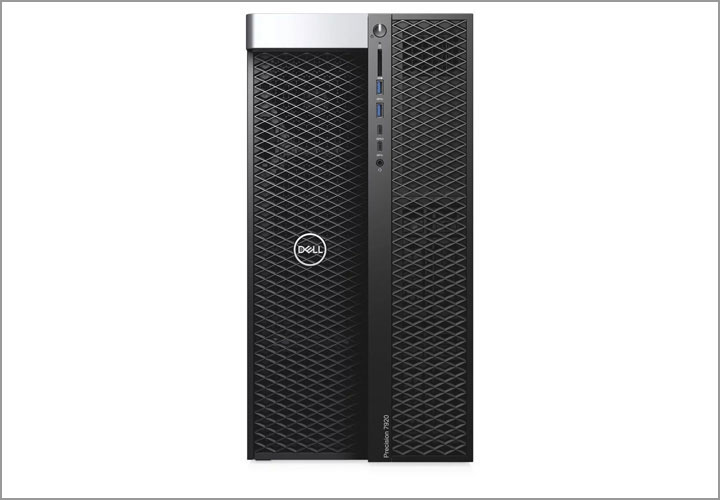

Dell T7920

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 - Gen3 x8
Slot 2 - Gen3 x16 GPU
Slot 3 - Gen3 x1 (covered)
Slot 4 - Gen3 x16
Slot 5 - Gen3 x4
Slot 6 - Gen3 x16
Slot 7 - Gen3 x8

Dell T7820

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 - Gen3 x8
Slot 2 - Gen3 x16 GPU
Slot 3 - Gen3 x1 (covered)
Slot 4 - Gen3 x16
Slot 5 - Gen3 x4
Slot 6 - PCI 33 MHz

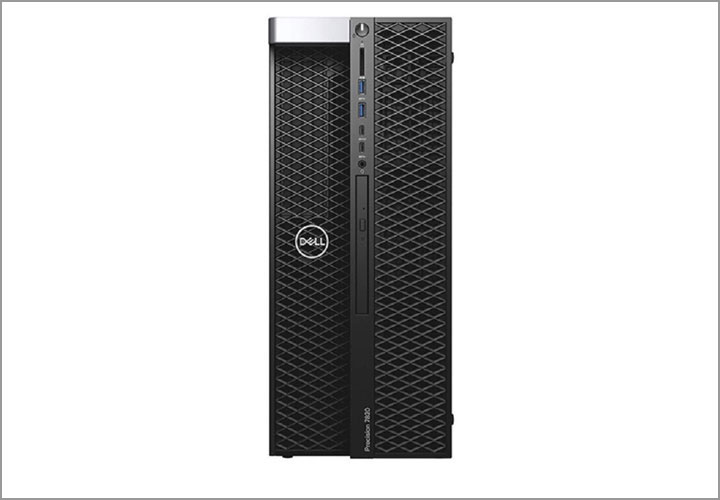

Dell T5820

Xeon W-2135
32GB RAM
Nvidia P2000

AJA Retail Software v.16.0

Slot 1 - Gen3 x8
Slot 2 - Gen3 x16 GPU
Slot 3 - Gen3 x1 (covered)
Slot 4 - Gen3 x16
Slot 5 - Gen3 x4
Slot 6 - PCI 33 MHz

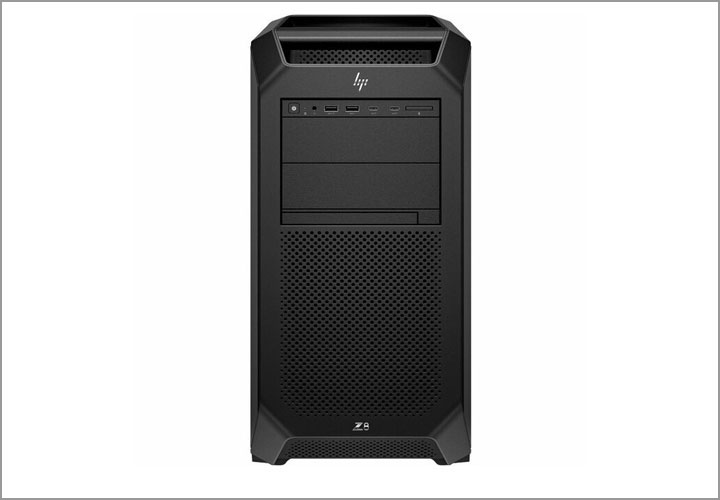

HP Z8 G5 Fury

W9-3475x 2.21 GHz 36/72 Core
128GB RAM
Nvidia RTX A4000

AJA Retail Software v.17.0

Slot 1 - Gen5 x16
Slot 2 - Gen5 x4
Slot 3 - Gen5 x16 GPU
Slot 4 - Gen4 x4
Slot 5 - Gen4 x16
Slot 6 - Gen3 x8
Slot 7 - Gen4 x16
Slot 8 - Gen4 x4

HP Z6 G5 Fury

Threadripper 7975 GHz 64/128 Core
128GB RAM
Nvidia RTX A4000

AJA Retail Software v.17.0

Slot 1 - Gen5 x16
Slot 2 - Gen5 x16 (**KONA 5)
Slot 3 - Gen5 x16 GPU
Slot 4 - Gen5 x16 (**KONA 5)
Slot 5 - Gen5 x16
Slot 6 - Gen5 x4

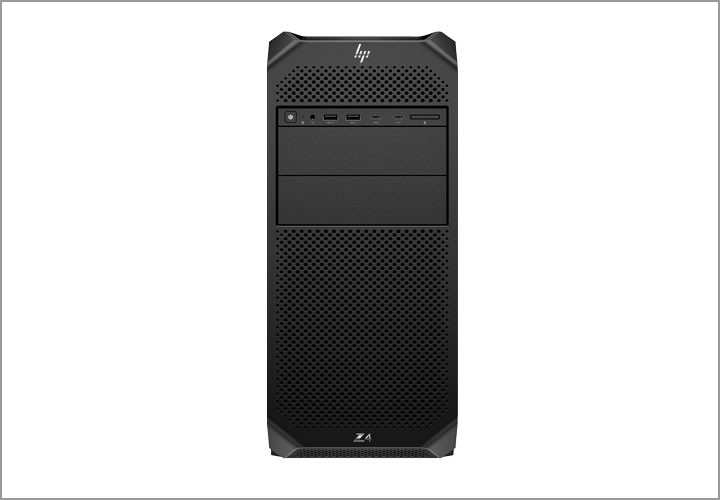

HP Z4 G5

W7-2475x 2.59 GHz 20/40 Core
64Gb RAM
Nvidia RTX A4000

AJA Retail Software v.17.0

Slot 1 - GPU
Slot 2 - Gen4 x4
Slot 3 - Gen4 x4
Slot 4 - Gen4 x16
Slot 5 - Gen4 x4

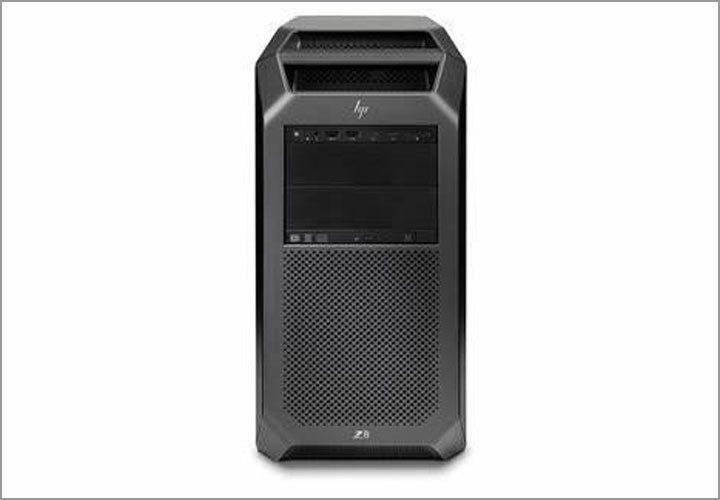

HP Z8 G4

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 - Gen3 x8
Slot 2 - Gen3 x16
Slot 3 - Gen3 x16
Slot 4 - Gen3 x16 GPU
Slot 5 - Gen3 x4
Slot 6 - Gen3 x16
Slot 7 - Gen3 x4

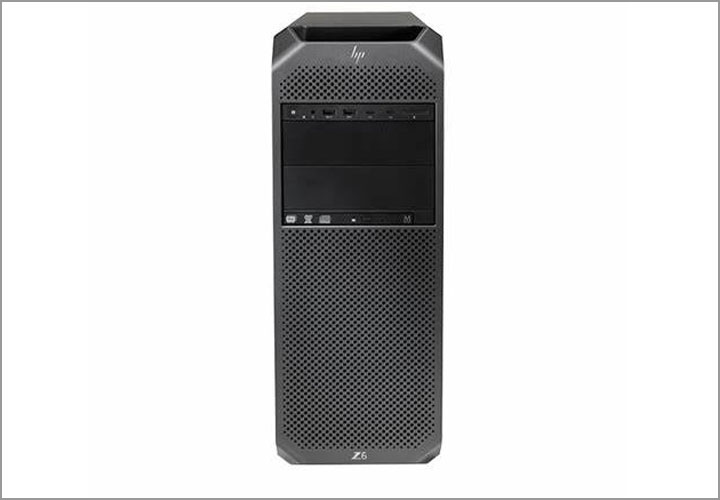

HP Z6 G4

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 - Gen3 x4
Slot 2 - Gen3 x16 GPU
Slot 3 - Gen3 x4
Slot 4 - Gen3 x8
Slot 5 - Gen3 x16
Slot 6 - Gen3 x4

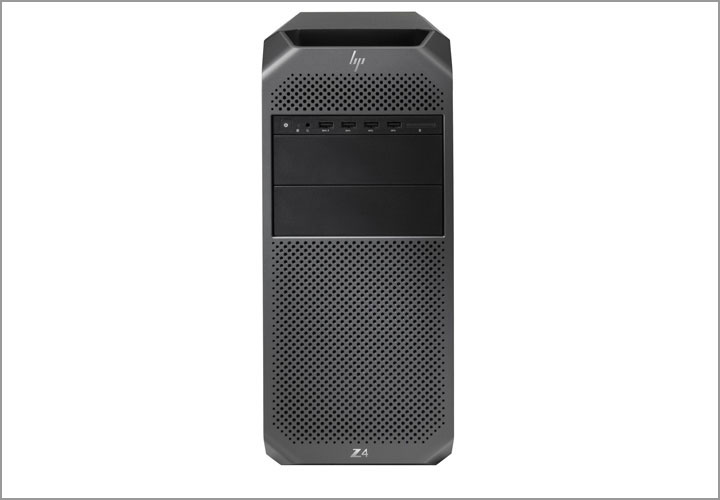

HP Z4 G4

Xeon W-2135
32GB RAM
Nvidia P2000

AJA Retail Software v.16.0

Slot 1 - Gen3 x16 GPU
Slot 2 - Gen3 x4
Slot 3 - Gen3 x16
Slot 4 - Gen3 x4
Slot 5 - Gen3 x8

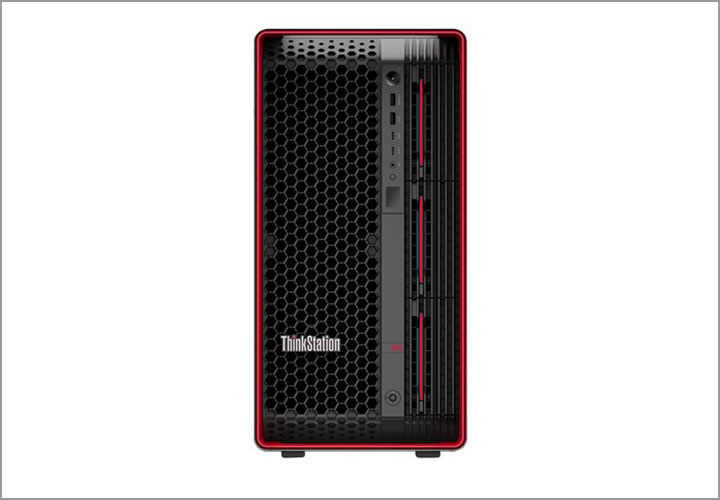

Lenovo PX

Dual Plat. 8490H 1.9 GHz 120/240 Core
64GB RAM
Nvidia T1000

AJA Retail Software v.17.0

Slot 1 - Gen4 x16 (*LHi/LHe+)
Slot 2 - Gen4 x16 (*LHi/LHe+)
Slot 3 - Gen5 x16 (*LHi/LHe+)
Slot 4 - Gen5 x16 (*LHi/LHe+)
Slot 5 - Gen4 x8
Slot 6 - Gen5 x16 GPU
Slot 7 - Gen4 x16 (*LHi/LHe+)
Slot 8 - Gen5 x16 (*LHi/LHe+)
Slot 9 - Gen4 x16 (*LHi/LHe+)

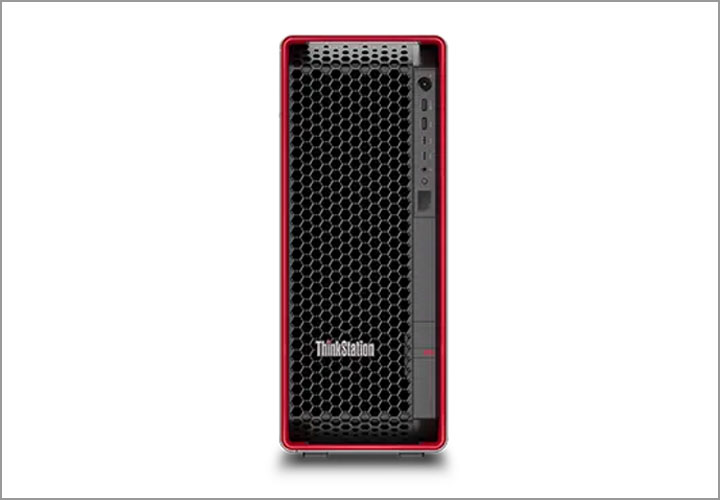

Lenovo P8

Threadripper 7995 2.5Ghz 96/192 Core
64GB Ram
Nvidia RTX ADA4000

AJA Retail Software v17.0

Slot 1 - Gen5 x16
Slot 2 - Gen4 x8
Slot 3 - Gen5 x16 GPU
Slot 4 - Gen4 x4
Slot 5 - Gen5 x16
Slot 6 - Gen4 x16
Slot 7 - Gen4 x4
Slot 4 - Gen4 x16

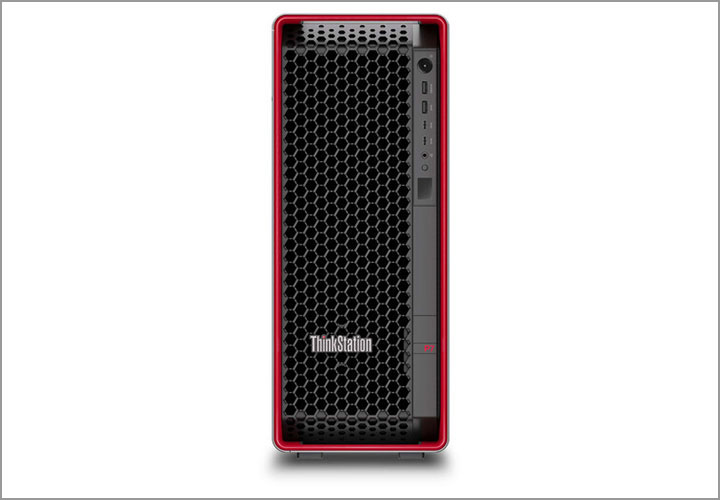

Lenovo P7

W9-3495x 1.9 GHz 56/112 Core
64GB RAM
Nvidia RTX ADA4500

AJA Retail Software v.17.0

Slot 1 - Gen5 x16 (*LHi/LHe+) (**KONA 5/X)
Slot 2 - Gen4 x8 (**KONA 5)
Slot 3 - Gen5 x16 GPU
Slot 4 - Gen4 x4 (covered)
Slot 5 - Gen5 x16 (*LHi/LHe+) (**KONA 5/X)
Slot 6 - Gen4 x16 (**KONA 5/X)
Slot 7 - Gen5 x4 (*LHi/LHe+)

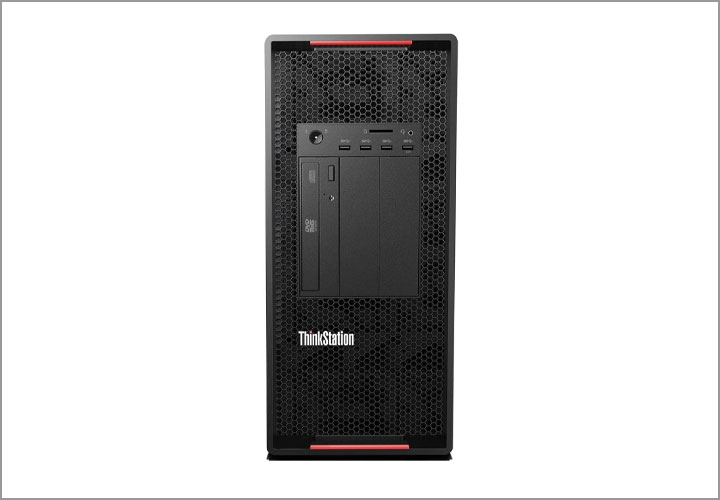

Lenovo P920

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 – Gen3 x16 / GPU
Slot 2 – Gen3 x4
Slot 3 – Gen3 x16
Slot 4 – Gen3 x4
Slot 5 – Gen3 x4
Slot 6 – Gen3 x16
Slot 7 – Gen3 x16
Slot 8 – Gen3 x16

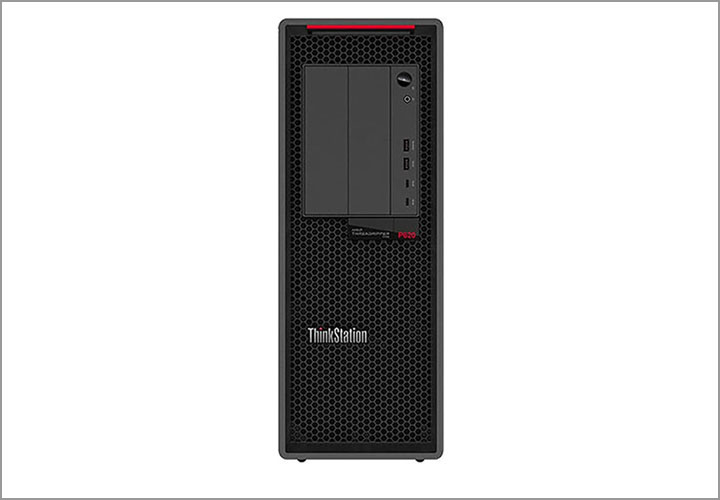

Lenovo P620

Threadripper 5995 GHz 64/128 Core
128GB RAM
Nvidia RTX 4000

AJA Retail Software v.17.0

Slot 1 - Gen4 x16
Slot 2 - Gen4 x16
Slot 3 - Gen4 x16 / GPU
Slot 4 - Gen4 x8
Slot 5 - Gen4 x8
Slot 6 - Gen4 x8 (*LHi/LHe+)

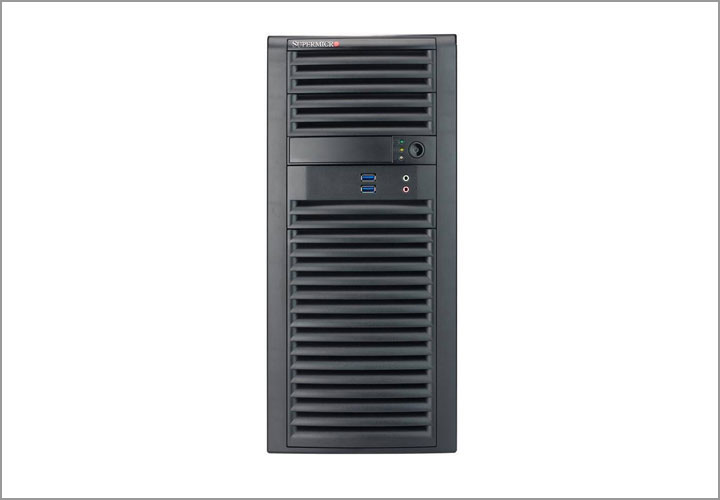

Supermicro SYS-7039A-I / X11DAI

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 1 - Gen3 x16
Slot 2 - Gen3 x8
Slot 3 - Gen3 x16
Slot 4 - Gen3 x8
Slot 5 - Gen3 x16 / GPU
Slot 6 - Gen3 x8

Supermicro SYS-7049GP-TRT / X11DPG

Dual Gold 6132 2.6 GHz
64GB RAM
Nvidia P600

AJA Retail Software v.16.0

Slot 2 - Gen3 x16 GPU
Slot 4 - Gen3 x16
Slot 6 - Gen3 x16
Slot 8 - Gen3 x16
Slot 9 - Gen3 x16
Slot 10 - Gen3 x16
Slot 11 - Gen3 x4

Supermicro SYS-5049A-T / X11SPA-TF

Xeon W-2135
32GB RAM
Nvidia P2000

AJA Retail Software v.16.0

Slot 1 - Gen3 x16
Slot 2 - Gen3 x8
Slot 3 - Gen3 x16
Slot 4 - Gen3 x8
Slot 5 - Gen3 x16 / GPU
Slot 6 - Gen3 x8
