openGear 3G-SDI to 3G-SDI/HDMI Scan Converter

Mini-Matrix App

$1245 US MSRP*

* Pricing is for US only. International pricing will vary.

OG-ROI-SDI

Overview

Tech Specs

Downloads

openGear Scan Converters

Overview

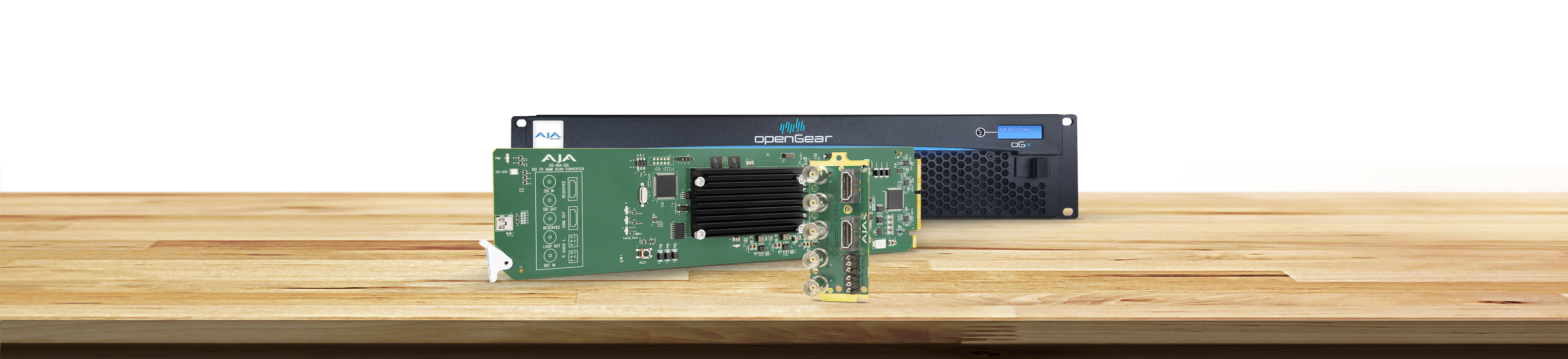

AJA’s OG-ROI-SDI is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs. With incredible Region of Interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.

Features

  • openGear compatible card
  • SDI to HDMI/3G-SDI conversion with SDI loop through
  • Scan Converter
  • 3G-SDI and HDMI 1.4 outputs
  • Supports SD, HD, and 3G formats (see Tech Specs for complete list)
  • Region of Interest scaling
  • Up, down, cross-conversion
  • Aspect ratio conversion
  • Frame rate conversion
  • Image H/V flip and 90 degree rotation
  • Conversion between Deinterlaced and Progressive signals
  • Accepts input SDI formats up to 1920 x 1080p 60 Hz
  • Loss of Input management: Black, Freeze, or Mute
  • Supports 8-channels of embedded audio
  • 2-channel analog audio output of disembedded audio
  • Genlock:  Reference Input, SDI Input, or Free Run
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 7 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
  • Five year warranty

Region of Interest

Eliminate extra interface clutter and menu bars and extract only the portion of the image you want.

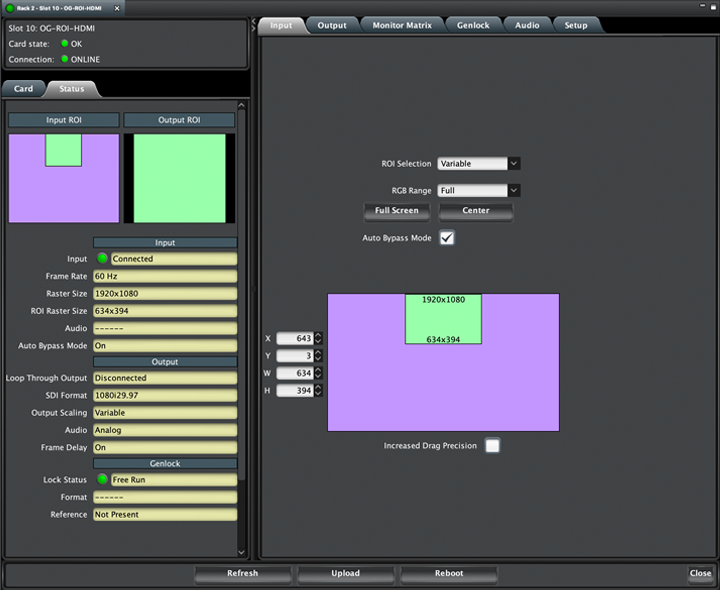

OG-ROI-SDI is fully compatible with the free Ross DashBoard application, offering interactive selection of a Region of Interest from the incoming computer signal. You have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

Take full control of aspect ratio, image rotation and frame rate conversion with on-screen controls in the DashBoard software that shows you what your source and output will look like, including the formats that are coming in and the choices you have made for the signal going out.

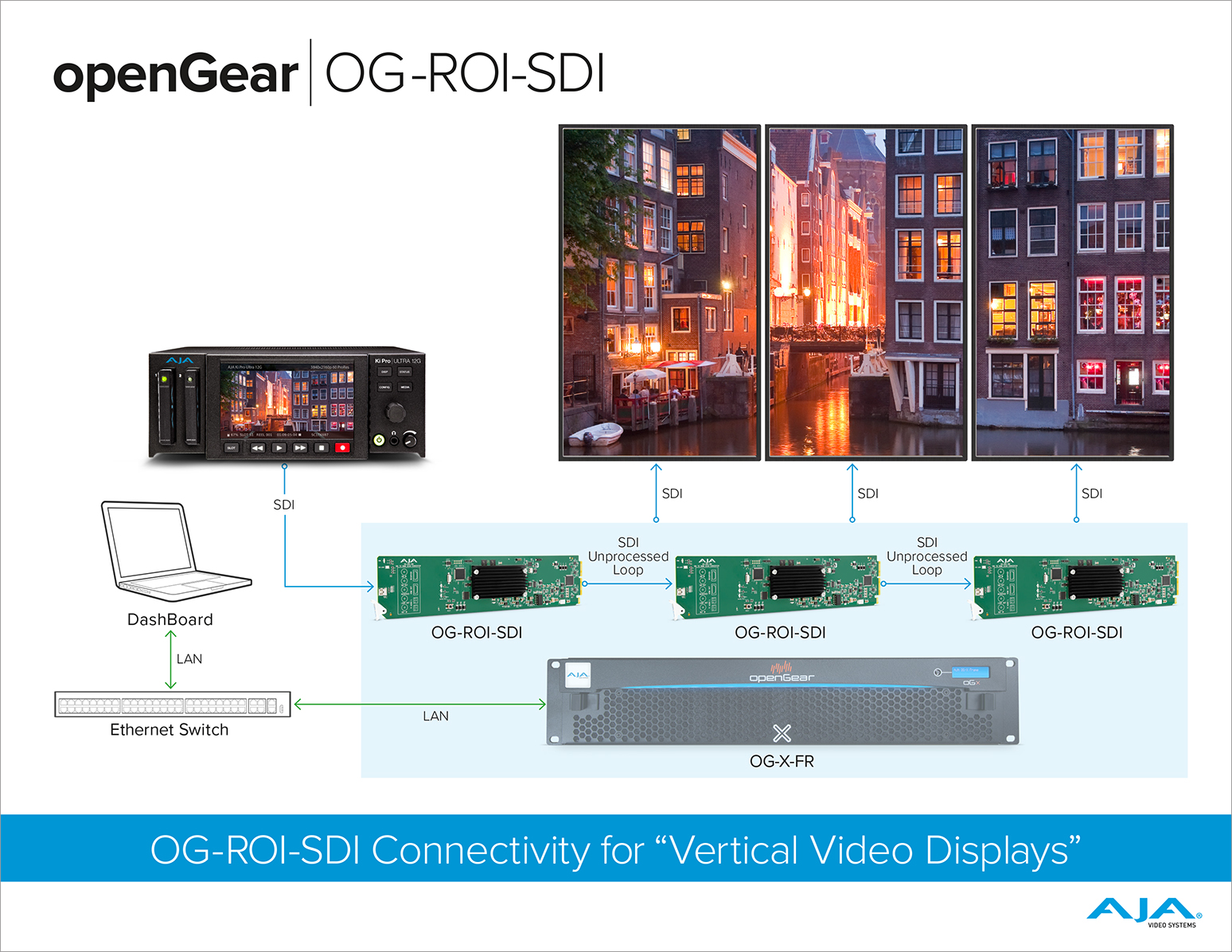

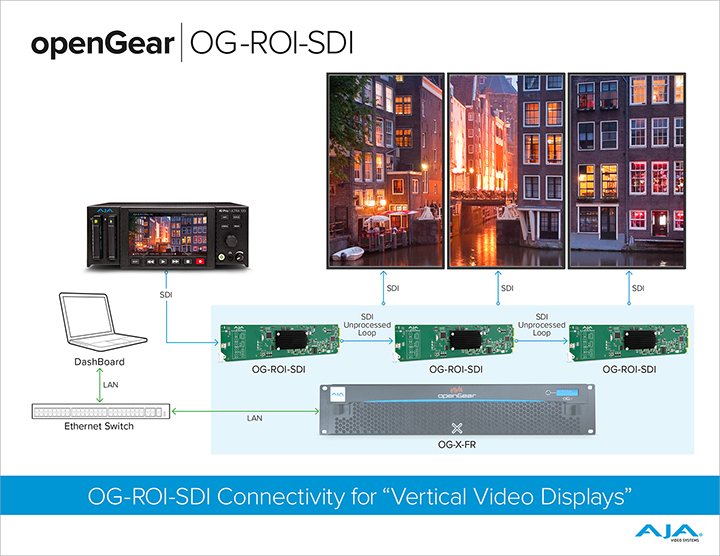

openGear ROI Window Wall Workflow

You're able to easily create highly effective and engaging displays by using additional OG-ROI-SDI openGear converters. By utilizing three OG-ROI-SDI openGear converters in the appropriate rackframe you can feed three display monitors side by side, each rotated to portrait mode. By using the SDI pass through of the OG-ROI-SDI, the SDI routed image is in sync, with each OG-ROI-SDI providing the necessary Region of Interest output via SDI. Settings for each of the OG-ROI-SDI openGear converters is provided via ethernet control through an ethernet switch. The result is a visually exciting and creative way to feed display content.

Download Workflow

Audio

OG-ROI-SDI accepts 2-channel analog audio from the 2x 3-pin terminal blocks connectors or embedded 8-channel audio from an SDI input. The audio source and routing can be selected in the DashBoard software and is embedded into the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Video Input Formats

  • Video Signals:
    • (HD) 1920x1080i 50, 59.94
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
    • (SD) 625i, 50
    • (SD) 525i, 59.94

Video Output Formats

  • (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

Color Range

  • Full
  • SMPTE

Reference Source

  • Free Run
  • Ext Ref

Reference Input

  • Supported reference video inputs include:
    • 1080i tri-level sync
    • 1080p tri-level sync
    • 720p tri-level sync
    • 625i Color Black
    • 525i Color Black
  • 75 ohm terminating

Video Input

  • 1x 3G-SDI BNC, SMPTE-259/292/424

Video Outputs

  • 1x 3G-SDI BNC, loop through
  • 1x 3G-SDI BNC, SMPTE-259/292/424
  • 1x HDMI Type A, HDMI v1.4

Audio I/O

  • 24-bit, 16-channel embedded SDI audio input
  • 24-bit, 16-channel embedded SDI audio output
  • 24-bit, 8-channel HDMI audio output
  • Balanced analog audio outputs, 2x 3-Pin terminal block connectors

User Interface

  • openGear DashBoard network control software via Windows, macOS or Linux

Size

  • openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 7.0 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
