openGear In-line HDR/SDR Algorithmic and LUT Color Transforms

$1995 US MSRP*

* Pricing is for US only. International pricing will vary.

OG-ColorBox

Overview

Tech Specs

Downloads

Color

Introduction

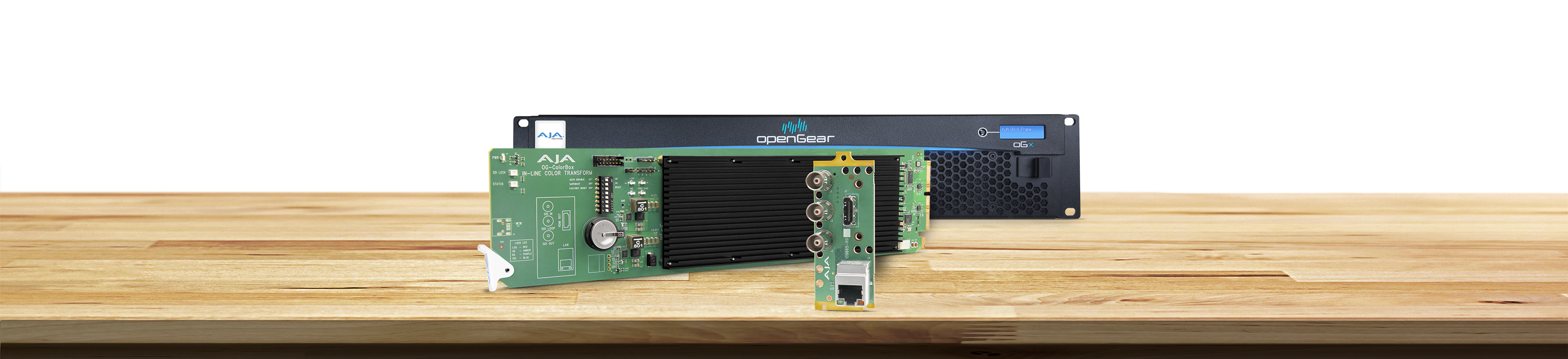

OG-ColorBox from AJA is a high performance color management openGear card specifically designed to meet the color conversion and color correction needs of broadcast, live events, and on-set applications. Supporting HDR, SDR, and Wide Color Gamut (WCG) signals, it utilizes 12G-SDI for single wire 4K/UltraHD up to 4:2:2 10-bit 60p or 4:4:4 12-bit 30p, with a unique color processing pipeline, and down-conversion. The OG-ColorBox’s ultra-low latency, less than ½ of a video line, makes it ideal for color managed workflows for live productions.

Built around a 33-point 3D LUT processor with tetrahedral interpolation, the AJA Color Pipeline provides additional 4x 1D LUTs and 2x 3x3 matrices that are each individually configurable or can be converted to Proc Amps or RGB Color Correctors. All of the color processing options can be easily managed via the web user interface, which can be accessed directly from a wired Ethernet connection.

OG-ColorBox also includes processing pipelines from NBCU LUTs and ACES. Additionally, OG-ColorBox offers licensable upgrade options for advanced color managed workflows, including the Colorfront Engine, BBC HLG LUTs, and ORION-CONVERT. ORION-CONVERT’s unique real time floating point math approach to color transformations produces higher precision results to get “access to the colors between the colors.” This enables pixel perfect color transforms and round-tripping where maintaining color fidelity is paramount.

The ACES Pipeline includes support for ACES Metadata File (AMF). Internal AMF processing is built on the OpenColorIO (OCIO) from the Academy Software Foundation and supports configurable input and output transforms.

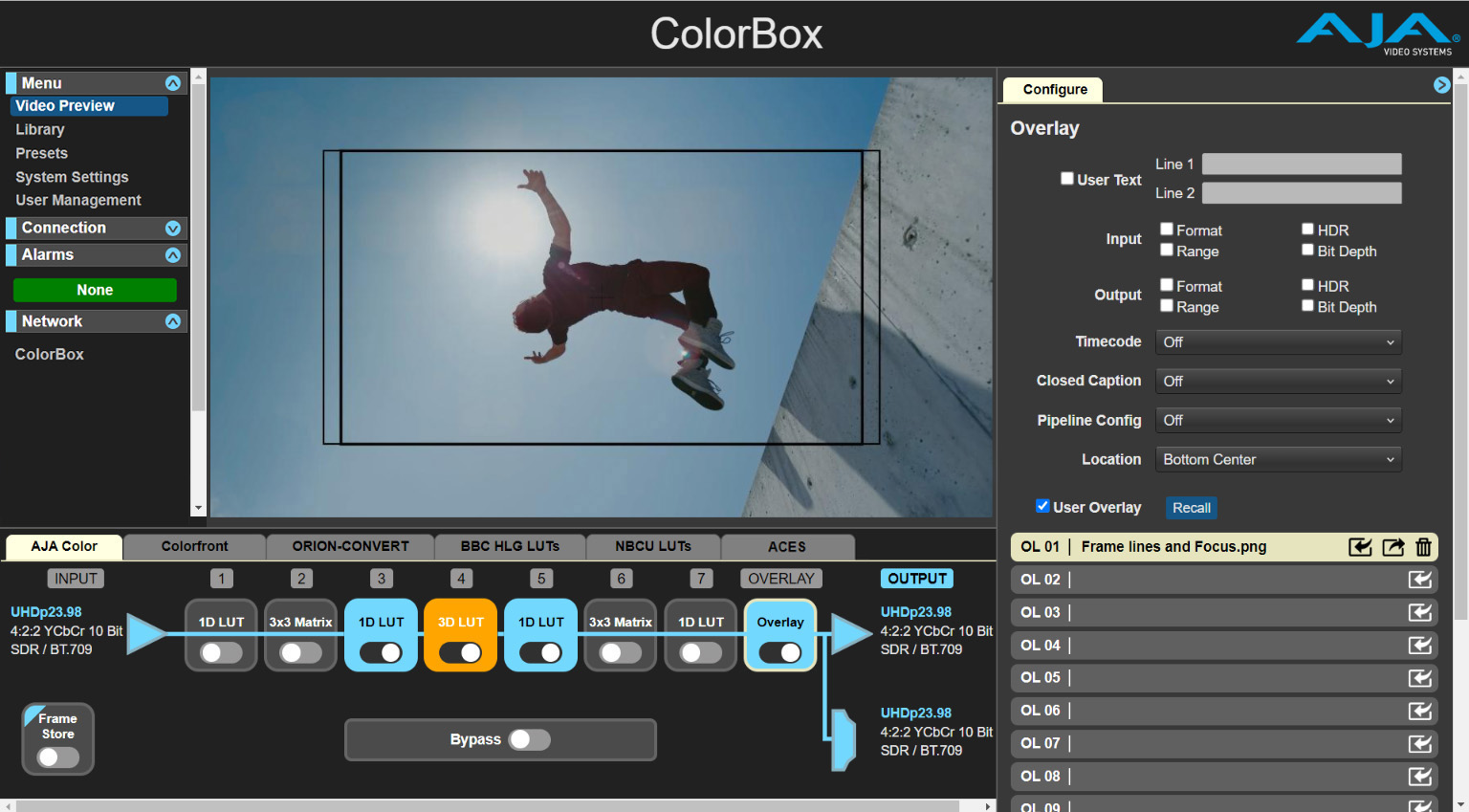

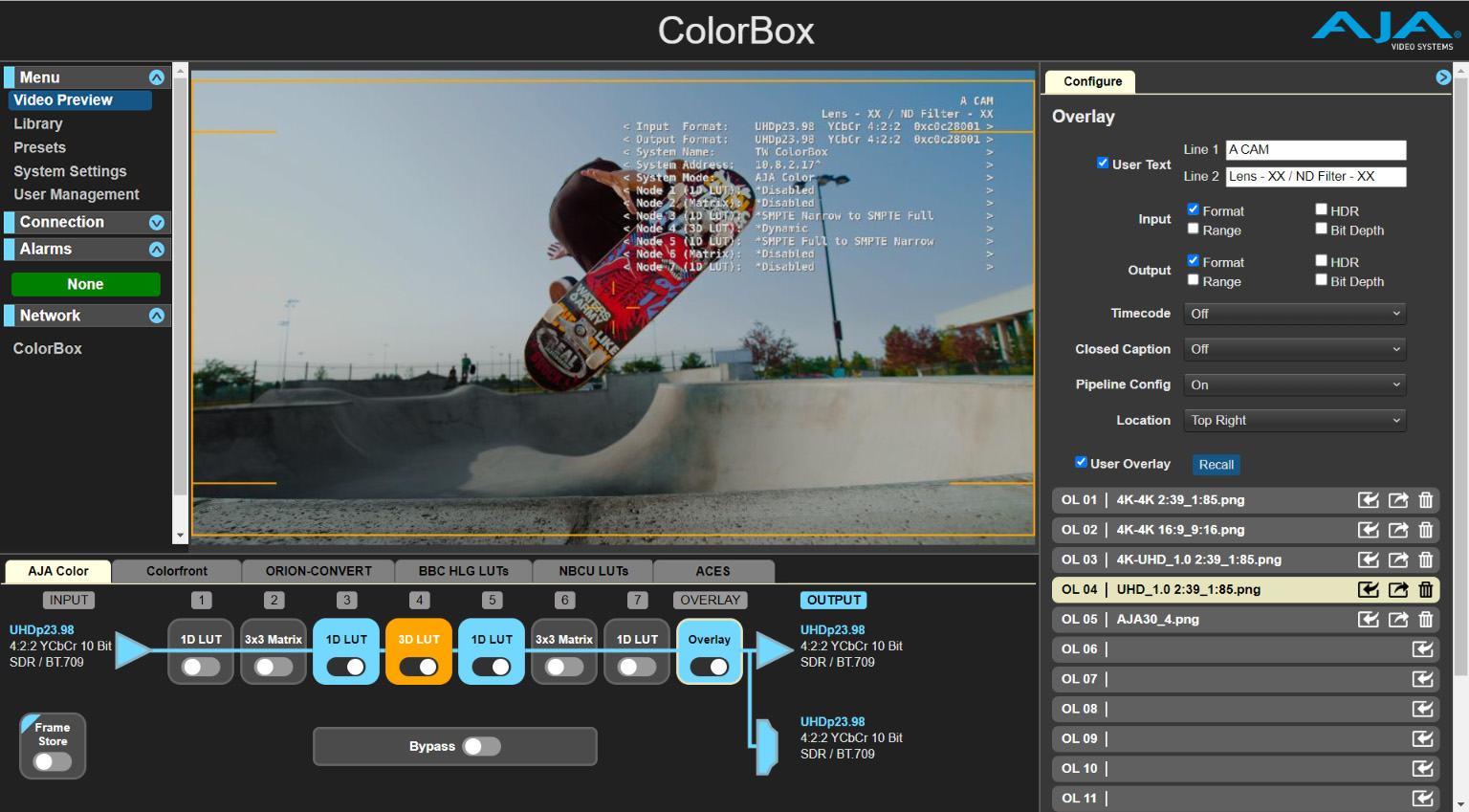

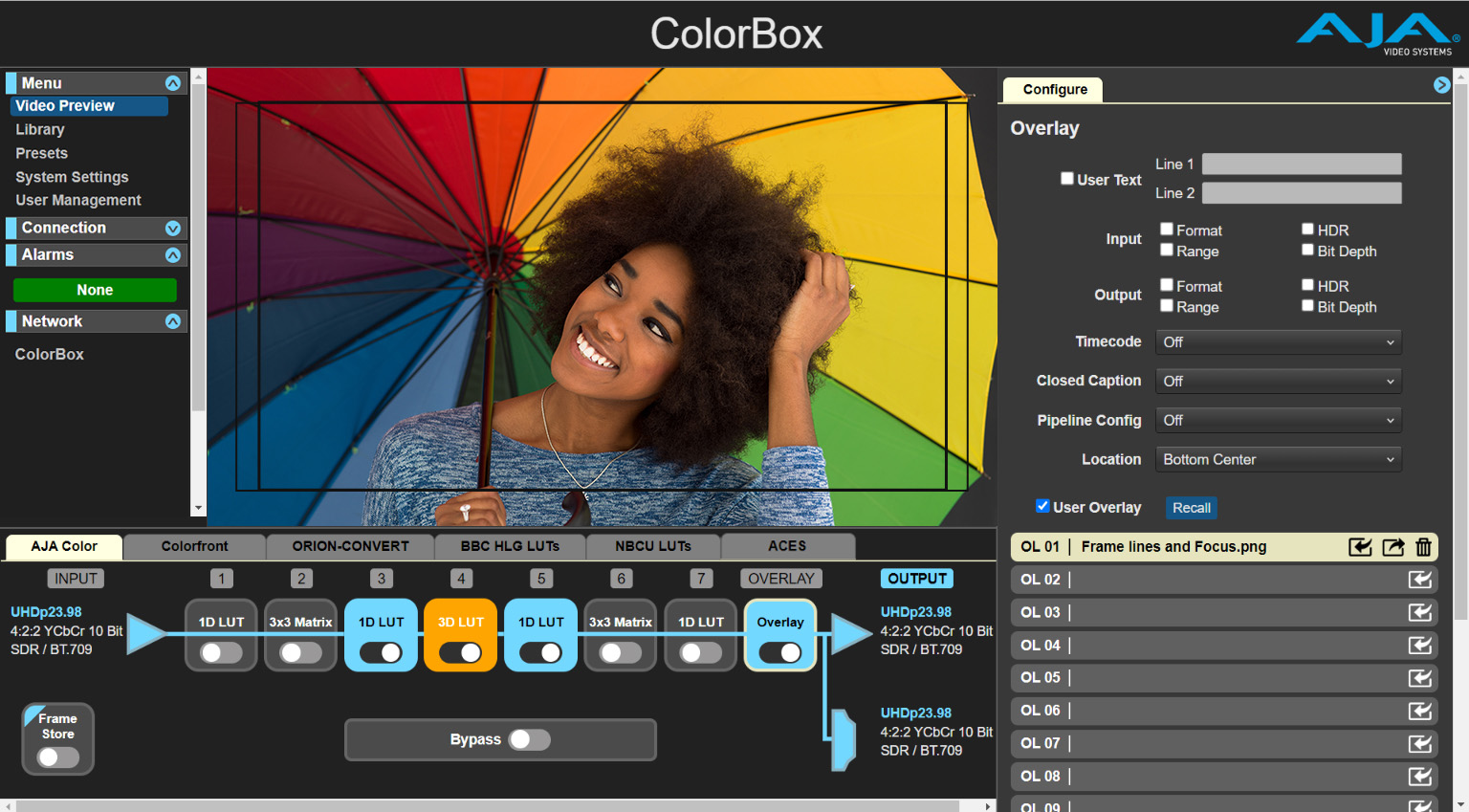

OG-ColorBox can overlay information onto the image, including helpful user definable text fields, user loaded images such as graphic elements and frame lines, and more.

OG-ColorBox also offers a sophisticated 4K test pattern generator and frame store, bringing useful tools to your workflow, including capturing up to a 4K image as a 16-bit .tiff file for the highest quality reference stills. These captures can be saved locally on OG-ColorBox or onto third party connected computers, which can simultaneously be running applications like Pomfort’s Livegrade Pro/Studio, Assimilate Live Looks, and QTAKE Video Assist software.



Features

  • openGear compatible card
  • 12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
  • 10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
  • 12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
  • 10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
  • Ultra-low latency, less than ½ a video line
  • Extensive AJA Color Pipeline built around the 33pt. 3D LUT processor with tetrahedral interpolation
    • 7x nodes plus Overlay
      • 1x 3D LUT processor, user configurable as 3D LUT or Dynamic
      • 4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
      • 2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
    • Supports industry standard file types, no conversion to proprietary format required
    • Configurable Color Space, Range, and Transfer Characteristic
    • Full frame LUT processing
  • Six Color Processing Pipelines
    • AJA Color
    • Colorfront (Licensable option)
    • ORION-CONVERT (Licensable option)
    • BBC HLG LUT (Licensable option)
    • NBCU LUTs
    • ACES
  • Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
  • 4K/2K Crop for HDMI output
  • Video Preview in web user interface for confidence monitoring
  • Built-in Frame Store
    • Up to 4K/UltraHD frame capture and recall
    • Capture pre or post processed images
  • Test Pattern up to 4K/UltraHD, 14 test patterns built-in
  • Overlay information on output
    • User Text
    • User Overlay
    • Input and Output signal information
    • Pipeline Configuration
    • Overlay can be captured with image for future reference

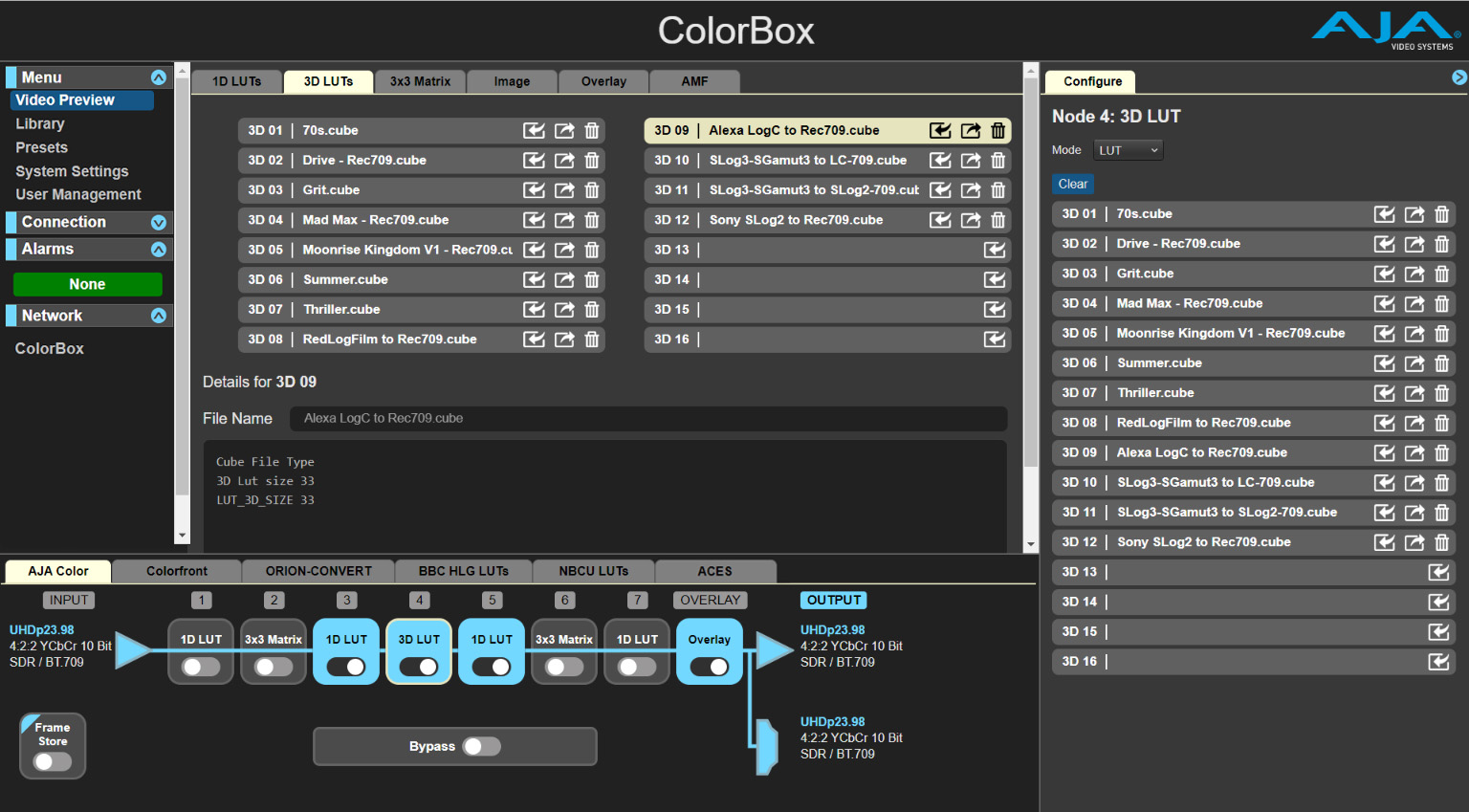

  • Onboard library for file management
    • 16x 1D LUTs
    • 16x 3D LUTs
    • 16x 3x3 Matrices
    • 16x Images
    • 16x Overlays
    • 16x AMFs
  • Preset Management, 10 per Pipeline plus Startup Preset
  • HDR signaling metadata management
  • ANC metadata pass-through
  • Embedded audio pass-through, SDI 16-ch, and HDMI 8-ch

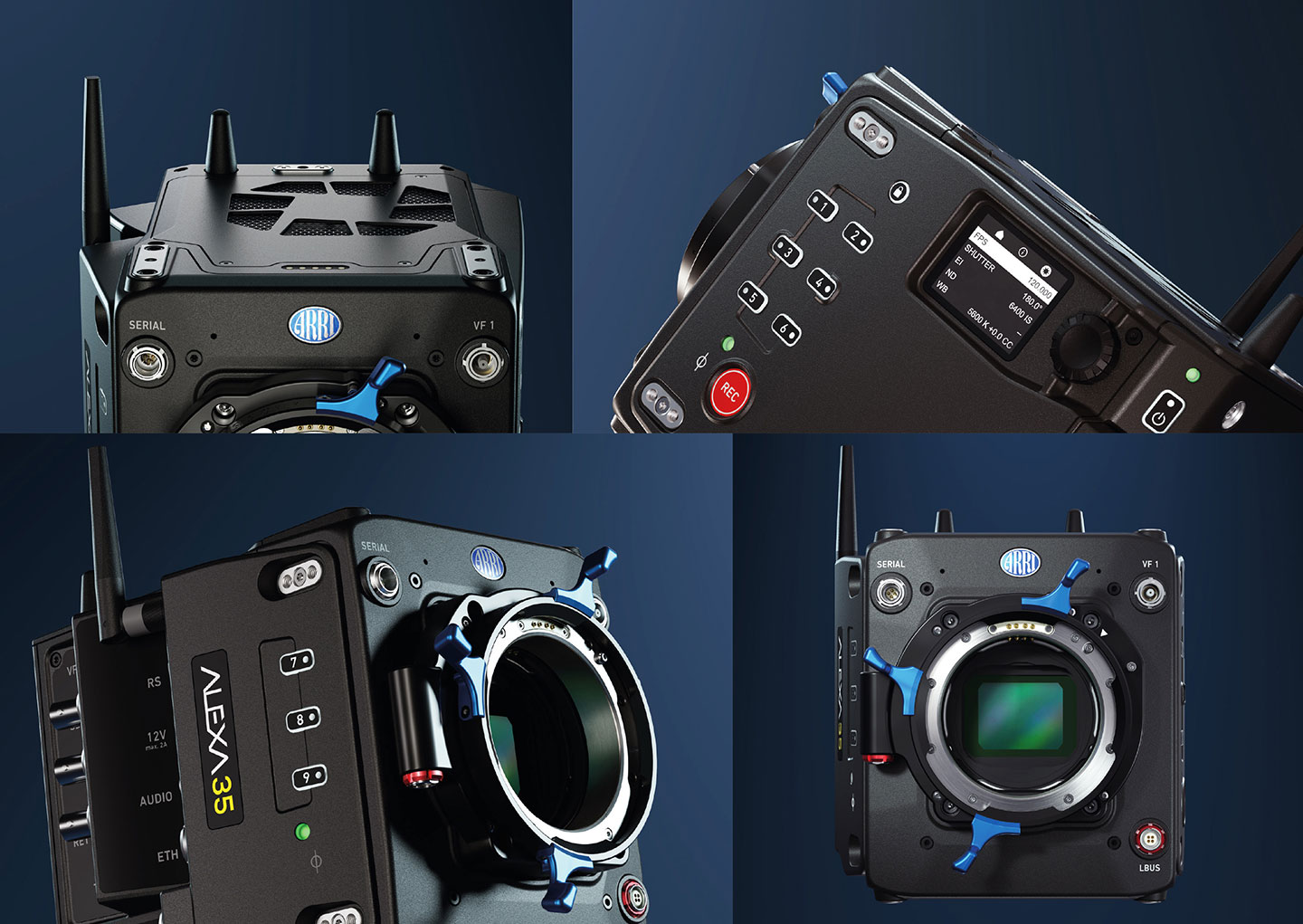

  • Support for ARRI Alexa 35's Wireless Video Optimized LogC4 (WVO)
  • Extensive API for third party control integrations
  • Embedded web server for remote control
  • IP configuration and monitoring through Ross DashBoard software
  • Power: 19 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR and OG-3-FR openGear frames
  • Redundant power supply option available on openGear frames
  • Five year warranty

Hardware

Hardware Details

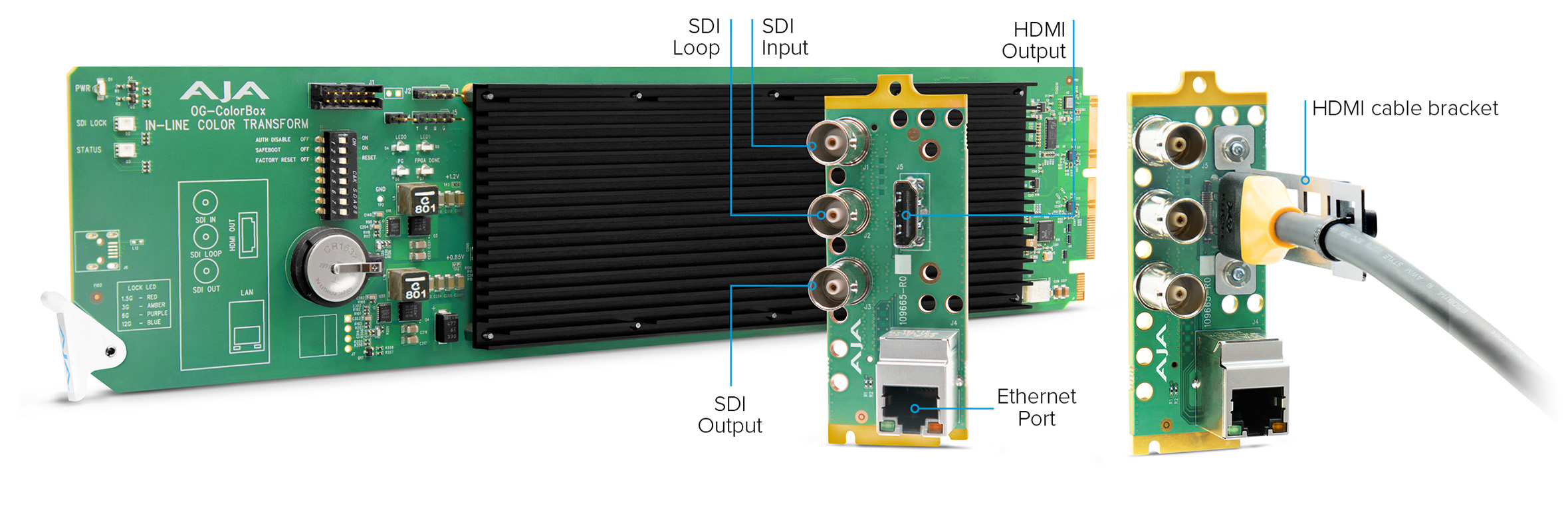

OG-ColorBox features robust design, with the backplane offering:

  • 12G-SDI Input
  • 12G-SDI loop through output
  • 12G-SDI Output
  • HDMI 2.0 Output
  • Ethernet port

HDMI Cable Retention

HDMI cables do not natively have a retention mechanism. This is why OG-ColorBox comes with a unique HDMI cable bracket that can be mounted to the rear card and offers a means to secure the HDMI cable. This helps to ensure connected cables remain installed, even after transportation.

Integration Across Broad Applications

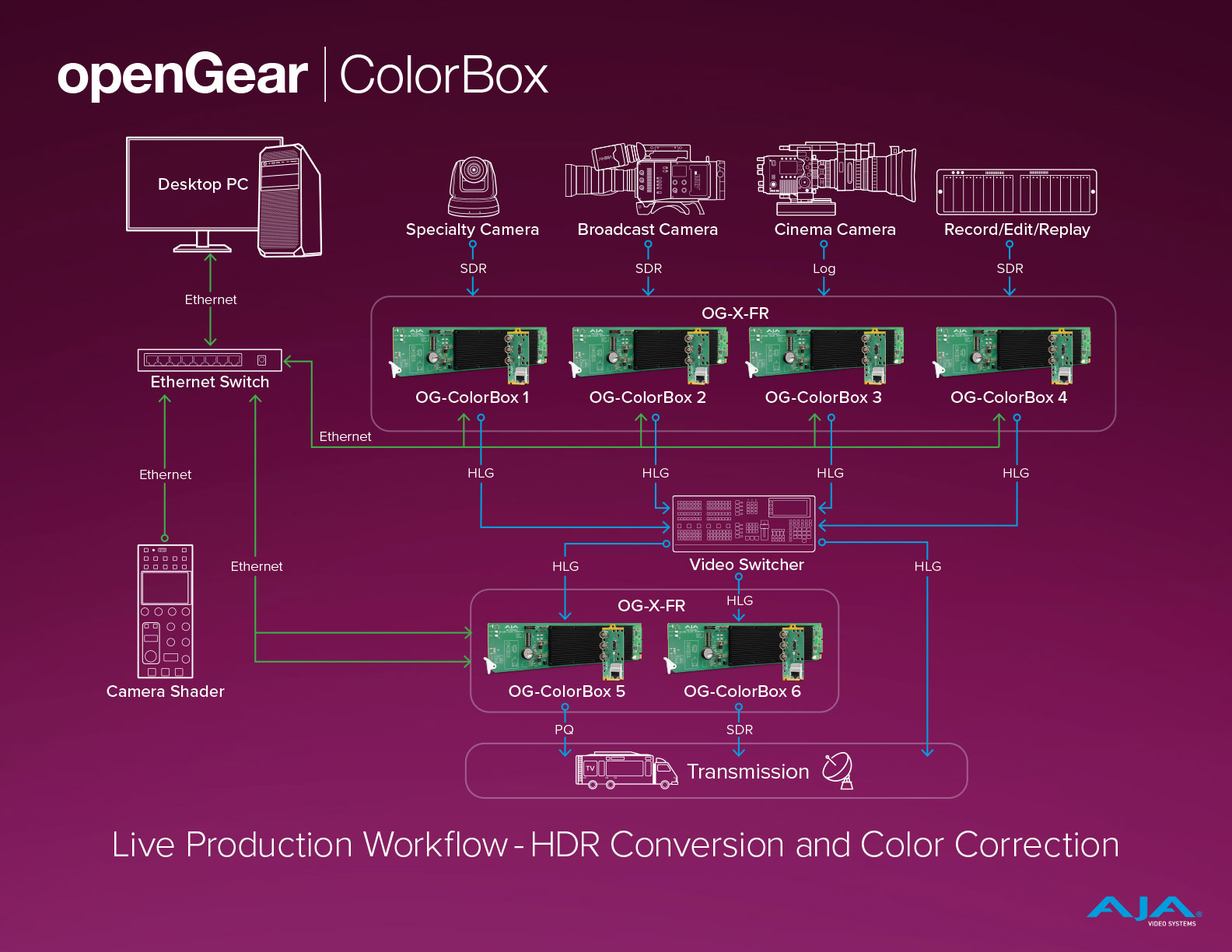

OG-ColorBox offers key applications for modern workflows, including:

  • 4K/UltraHD SDR and HDR pipelines for live television and concert production. OB trucks and other live event infrastructure can easily use OG-ColorBox color correct signals and convert SDR signals to HDR and HDR to other delivery formats. The licensable Colorfront, ORION-CONVERT, and BBC HLG LUTs options, as well as the free built-in AJA Color, NBCU LUTs, and ACES pipelines, provide all the necessary tools to manage HDR workflows and conversions. For hardware based control, SKAARHOJ and CyanView have integrated native control of OG-ColorBox into their control panels.
  • On-set look management and color grading for DITs or anyone in charge of ensuring that the content captured on-set will meet the needs of the Cinematographer, Director, colorist, costume and lighting designers, and editors on the production. A DIT can easily manage workflows to load multiple looks, make adjustments as needed, and save reference images (up to 4K) for dailies, postproduction, and later use. Pomfort Livegrade Pro and Studio, Assimilate Live Looks and Live Assist, and QTAKE Video Assist software integrate easily, offering native control of OG-ColorBox in real time. The unique full frame processing capability of OG-ColorBox eliminates partial frame LUT processing.
  • Wherever the highest quality display monitor calibration is required for a production studio, rental house, on-set, live, or postproduction facility, OG-ColorBox can help. OG-ColorBox features an extensive API that allows third parties, like Light Illusion ColourSpace and Portrait Displays Calman, to control the OG-ColorBox Frame Store and its ability to output 12-bit RGB test patches for high quality monitor calibration applications.

High Density Delivered

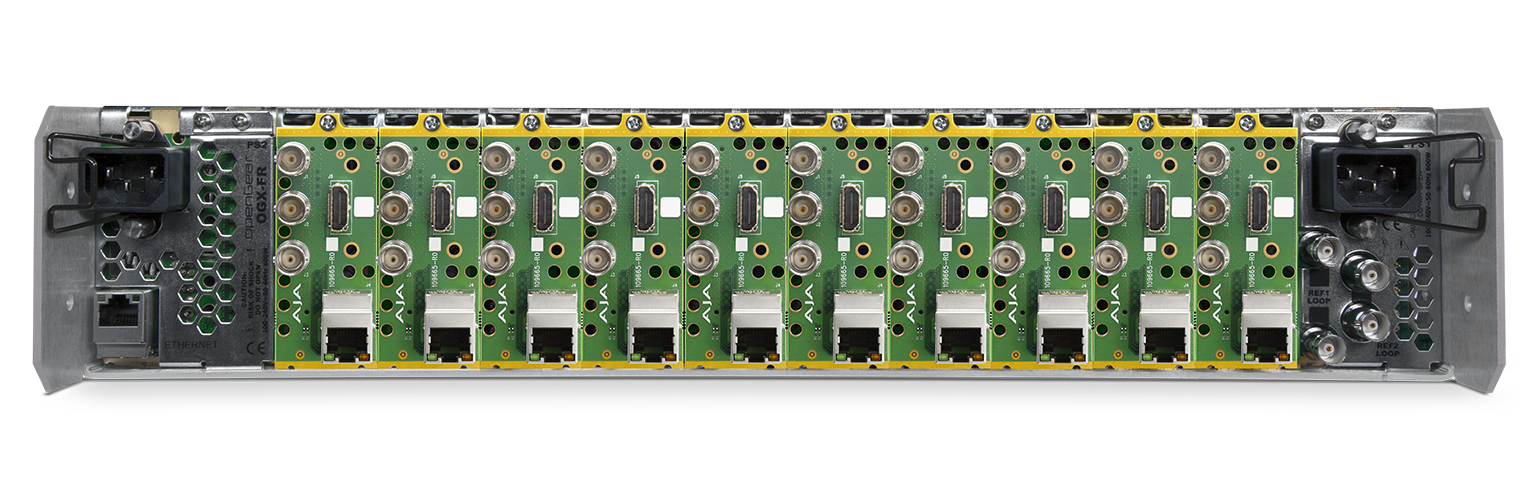

Up to ten OG-ColorBoxes can be used in a 2RU openGear frame, supplying the highest density and lowest latency color accurate control for your OB truck or production facility with the security of redundant power supplies and hot-swap support.

Image Processing Pipelines

OG-ColorBox comes with a range of Pipelines to choose from. Select any particular Pipeline for your production needs. Some Pipelines are designed specifically for live broadcast, live event, or on-set needs. Others, like the AJA Color Pipeline, offer greater flexibility for more control over each step of a transform for any application. Pipelines like Colorfront, ORION-CONVERT, or BBC HLG LUTs will display a watermark over the image until a license is applied, offering you the ability to “try before you buy” the optional license. OG-ColorBox offers unique image processing capabilities with an unrivaled array of options for a device of its type with full 12-bit 4:4:4 up to 4K 30p and 10-bit 4:2:2 up to 4K 60p, plus down-conversion. A bypass node is integrated into each processing pipeline for both 12G-SDI and HDMI 2.0 outputs, allowing quick comparisons between the input and output signals.

There are six image processing Pipelines available:

  • AJA Color
  • Colorfront (requires License to remove watermark)
  • ORION-CONVERT (requires License to remove watermark)
  • BBC HLG LUTs (requires License to remove watermark)
  • NBCU LUTs
  • ACES

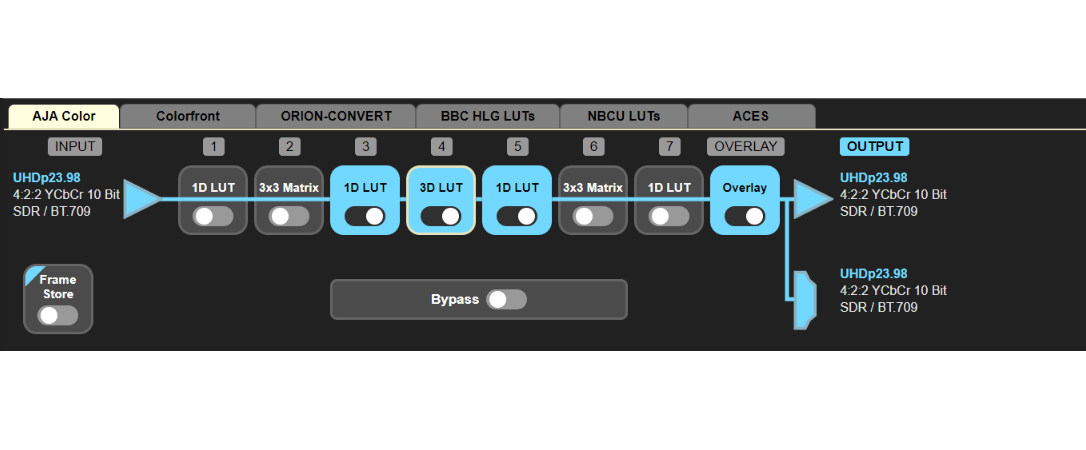

Powerful AJA Color Pipeline (ACP)

AJA Color Pipeline provides users with the most advanced color management tools available in the openGear form factor. With seven nodes of real time processing plus Overlay, the pipeline offers capabilities only seen in software based color correction applications. These nodes give you full control over colorspace, video level, and dynamic range conversion to get the most out of your color managed workflow. Dynamic nodes are controllable by 3rd party applications.

  • 7x processing nodes plus Overlay
  • Pipeline processes in 12-bit RGB
  • 1x 3D LUT, user configurable as 3D LUT or Dynamic
    • 33pt. 3D LUT processor with tetrahedral interpolation
  • 4x 1D LUT, user configurable as 1D LUT, Dynamic, or Color Corrector
    • Supports 10 or 12-bit 1D LUTs
  • 2x 3x3 Matrices, user configurable as 3x3 Matrix, Dynamic, or Proc Amp
  • Supports industry standard file types, no conversion to proprietary format required
  • Configurable Color Space, Range, and Transfer Characteristic
  • Full frame LUT processing
  • Full bypass node for 12G-SDI and HDMI 2.0

Set-ups can be easily replicated utilizing OG-ColorBox preset import and export capabilities.

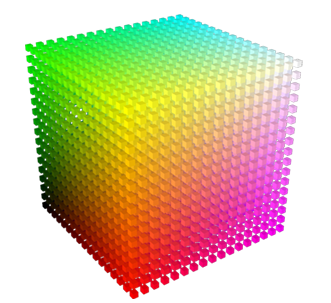

33pt 3D LUT Processor with Tetrahedral Interpolation

This primary 33pt 3D LUT uses tetrahedral interpolation for the highest accuracy color conversion. 3D LUTs provide full volumetric non-linear color adjustment, and a 33pt 3D LUT is a requirement for HDR workflows. Very useful for calibration purposes as the controls can respond to all possible calibration errors. Similarly, high end movie and television productions depend on 3D LUT processing for look generation, distribution, and management. When set to Dynamic, the 3D LUT is fully controllable through 3rd party software like Pomfort’s Livegrade, Assimilate’s Live Looks, and QTAKE Video Assist. The 3D LUT processor supports a wide range of 3D LUT file types and can even process .CLF and .CTF files as 3D LUTs.

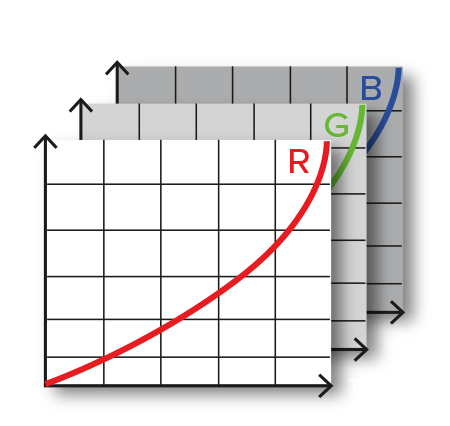

1D LUTs

Flexibility is key in production and post, with four 1D LUTs, it is easy to manage your color processing pipeline to get the best possible image. 1D LUTs are commonly used as “shaper LUTs” wrapping around the 3D LUT. The front shaper 1D LUT allows you to map perceptually significant values, typically the darker part of the color space, to use more of the 3D LUT transform data set, resulting in a more effective use of the 3D LUT to produce a better image. The backside shaper 1D LUT is usually the inverse of the front, mapping pixel values into the original dynamic range. 1D LUTs can also be effectively used as log-to-linear and linear-to-log transforms. In the AJA Color Pipeline, 1D LUTs can even be set up as RGB Color Correctors for color correcting a source before 3D LUT processing, this is a common workflow in live production applications.

3x3 Matrices

OG-ColorBox’s two 3x3 Matrices provide the operator a means to perform different color processing tasks outside of an LUT using their own 3x3 matrix files. 3x3 Matrices are commonly used for color space conversion, for example, between RGB and XYZ or YUV, BT.709 and BT.2020, or other color spaces with different primaries. A 3x3 Matrix can be used to color balance a signal if the white balance is off. They can also be used for look creation, such as film emulation. In the AJA Color Pipeline, 3x3 Matrices can even be set up as Proc Amps for adjusting a signal’s Gain, Black level, Hue, and Saturation before 3D LUT processing, this is a common workflow in live production applications.

ACES Support

The Academy Color Encoding System (ACES) is an industry standard for managing color throughout the life cycle of a motion picture or television production. From capture through editing, VFX, mastering, public presentation, archiving, and future remastering, ACES ensures a consistent color experience that preserves the creative vision.

OG-ColorBox’s ACES color processing pipeline supports ACES workflows natively and can load and recall 16 AMF (ACES Metadata File) files onboard.

Additionally, ACES has given AJA and Pomfort the first joint product certification status for AJA’s OG-ColorBox and Pomfort’s Livegrade for their support of ACES based workflows.

Learn more about ACES.

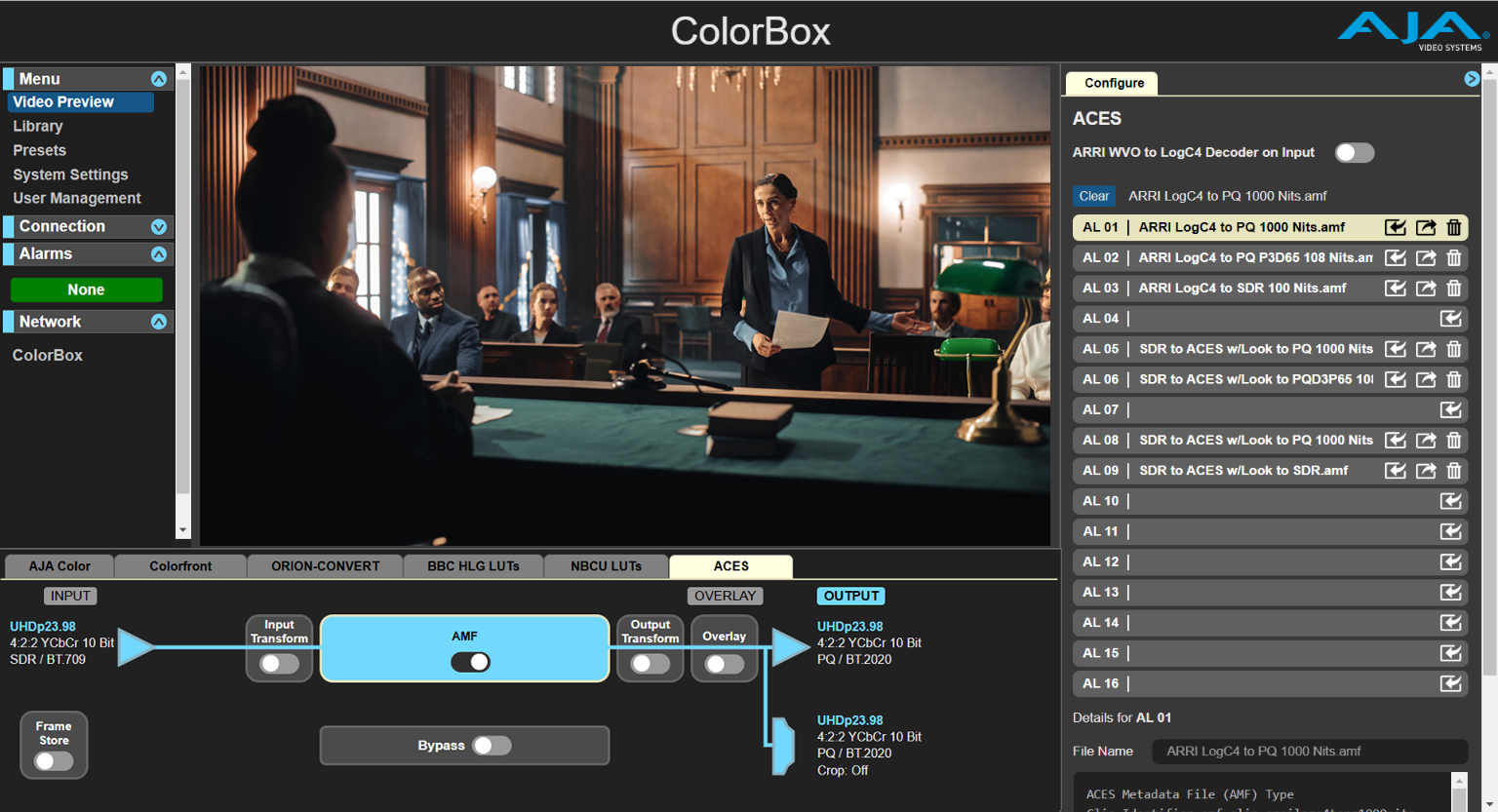

ACES Pipeline with AMF Support

The Academy Color Encoding Systems, or ACES, has a long track record of creating a holistic approach to color management. Since its inception, ACES has worked with artists and vendors to build a system of color management that is comprehensive yet easy to use. Now, the AJA OG-ColorBox makes it even easier with our newest color pipeline, the ACES pipeline.

The OG-ColorBox ACES pipeline uses the ACES Metadata File (AMF).

Definition of AMF from ACES: “AMF is the configuration file that allows a precise setup for an ACES pipeline. Besides this basic goal, AMF is also the tool of choice to transmit and exchange configuration parameters in order to ensure consistency within a workflow and across the entire ecosystem of tools that are used within that workflow.”

AMF workflows support an exchange of information that should allow for better interoperability of color throughout the filmmaking process. An AMF includes information needed for an ACES pipeline like the input transform, look transform, and output transform (for example, camera log > ACES where the look is applied > display output) into a single XML file that can then be easily distributed to others working on the project from on-set to post to final grade.

  • Built on OpenColorIO (OCIO)
  • Configurable ACES Input and Output Transforms
  • Full bypass node for 12G-SDI and HDMI 2.0

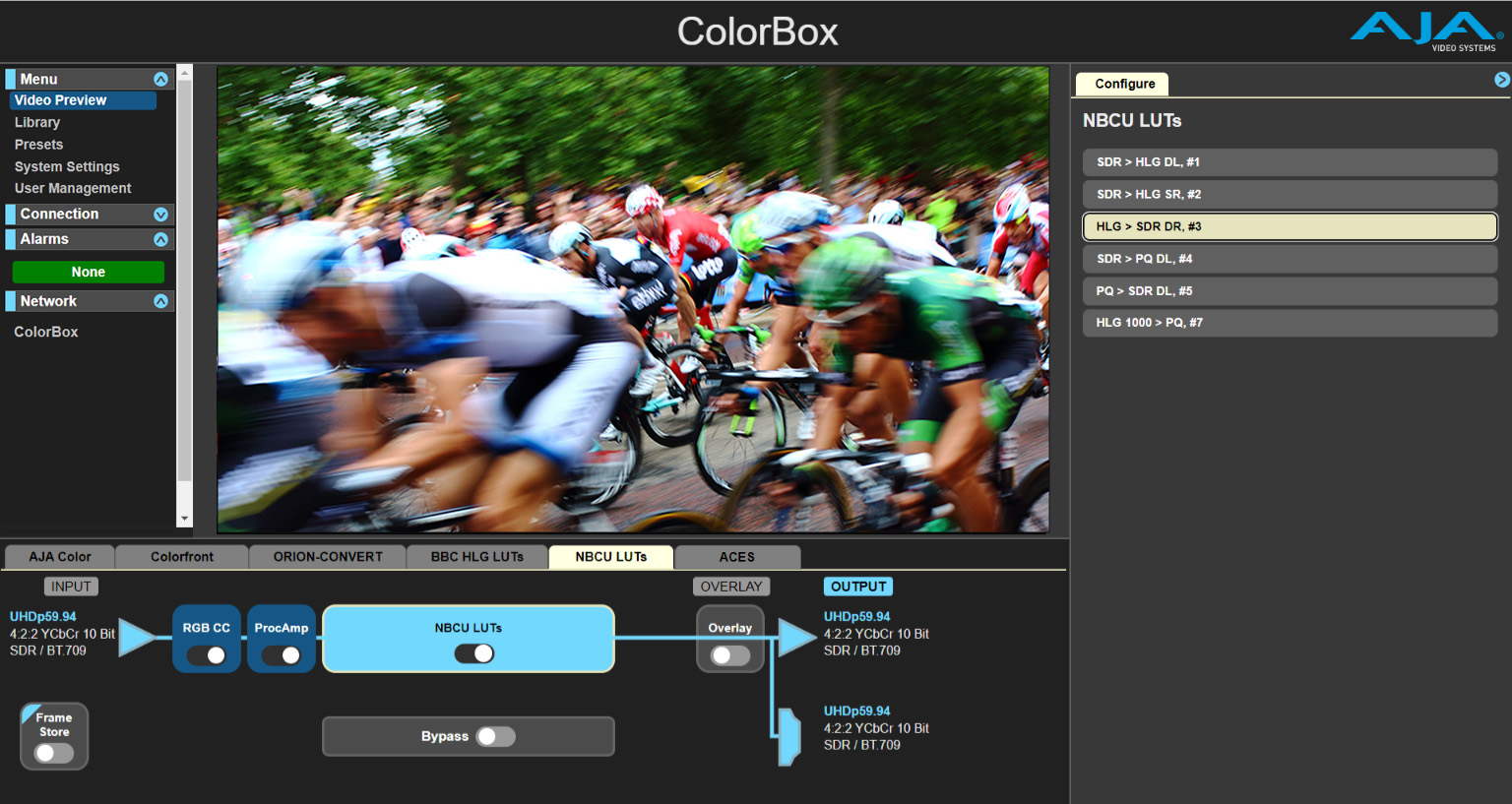

NBCU LUTs Pipeline

NBCU LUTs, developed by NBCUniversal Media, LLC in collaboration with Cromorama, enable a workflow for single-master live production of simultaneous HDR and SDR content. Designed for television broadcasters, NBCU LUTs include SDR, HLG, and PQ LUTs that maximize the dynamic range and color volume in HDR without compromising core SDR broadcasts.

  • Imperceptible round-tripping of SDR BT.709
  • Conversions designed with a knee that is natural with latitude for live video shading
  • Scene Light and Display Light conversions
  • SDR, HLG, and PQ conversions
  • Utilizes 33 point Tetrahedral 3D LUT Interpolation
  • Proc Amp and Color Corrector
  • Full bypass node for 12G-SDI and HDMI 2.0
  • Support for ITU BT.2408, Operational Practices in HDR Television Production

NBCU LUT Conversions

  • 1-NBCU_SDR2HLG_DL_v1.1, SDR UpMap to HLG using Display Light
  • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light
  • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light
  • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light
  • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light
  • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ

Set-ups can be easily replicated utilizing OG-ColorBox preset import and export capabilities.

Licensable Options

OG-ColorBox offers a number of ways to further enhance your workflows with SDR/HDR WCG transforms from key third party developers and broadcasters. Paying only for what you need makes OG-ColorBox very cost effective.

Colorfront Pipeline

The OG-ColorBox HDR/WCG capabilities leverage video and color space processing algorithms within the Colorfront Engine,  developed by Colorfront’s CTO Bill Feightner and Lead Engineer Tamas Perlaki. Colorfront offers a color processing pipeline with optimized transforms that maintain perceptual integrity designed for use wherever HDR productions are performed.

Colorfront’s TV Mode and Live Mode are now available in both FS-HDR and as a licensable option in OG-ColorBox. TV Mode is an intuitive color processing engine aimed at broadcast workflows that contain SDR, HLG, PQ, and Sony S-Log3 transforms.

The same license also enables Colorfront Live Mode, which includes several camera Log formats beyond TV Mode, like the new ARRI LogC4, as well as the new SDR to Dolby Vision Preview Mode with simplified controls for highlights and contrast.

Optional License $995 US MSRP

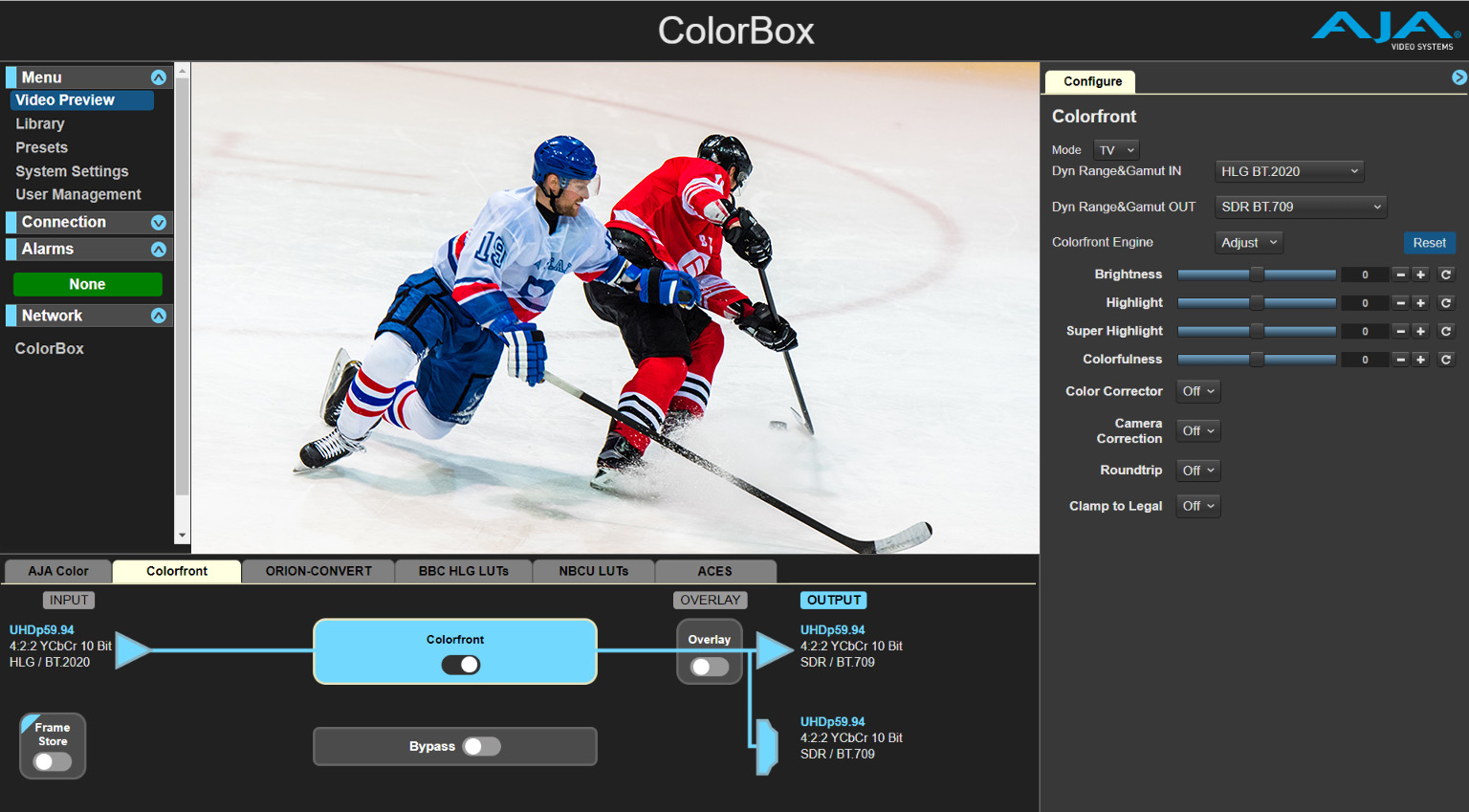

Colorfront Engine TV Mode

Colorfront Engine TV mode is geared for broadcast workflows or standard production workflows with simple display referred color conversions. It is similar to the Colorfront Engine Live mode but with a simplified set of color correction controls.

  • SDR, HLG, PQ, and Sony S-Log3 transforms
  • Highlight and roll-off management with Brightness, Highlight, and Super Highlight
  • Colorfulness control for managing the Hunt Effect
  • Roundtrip setting for ensuring a technical match during a round-trip process
  • Adjusting RGB and Master color controls for:
    • Lift, Gamma, and Gain
  • Adjusting for camera correction with Exposure, Color Temp, and Tint

TV mode may be the right choice for you if you’re working in live television broadcast productions or in any standard productions that do not require camera log conversions beyond Sony S-Log3, you prefer video style color controls (e.g., Lift/Gamma/Gain), and a simplified set of color processing controls.

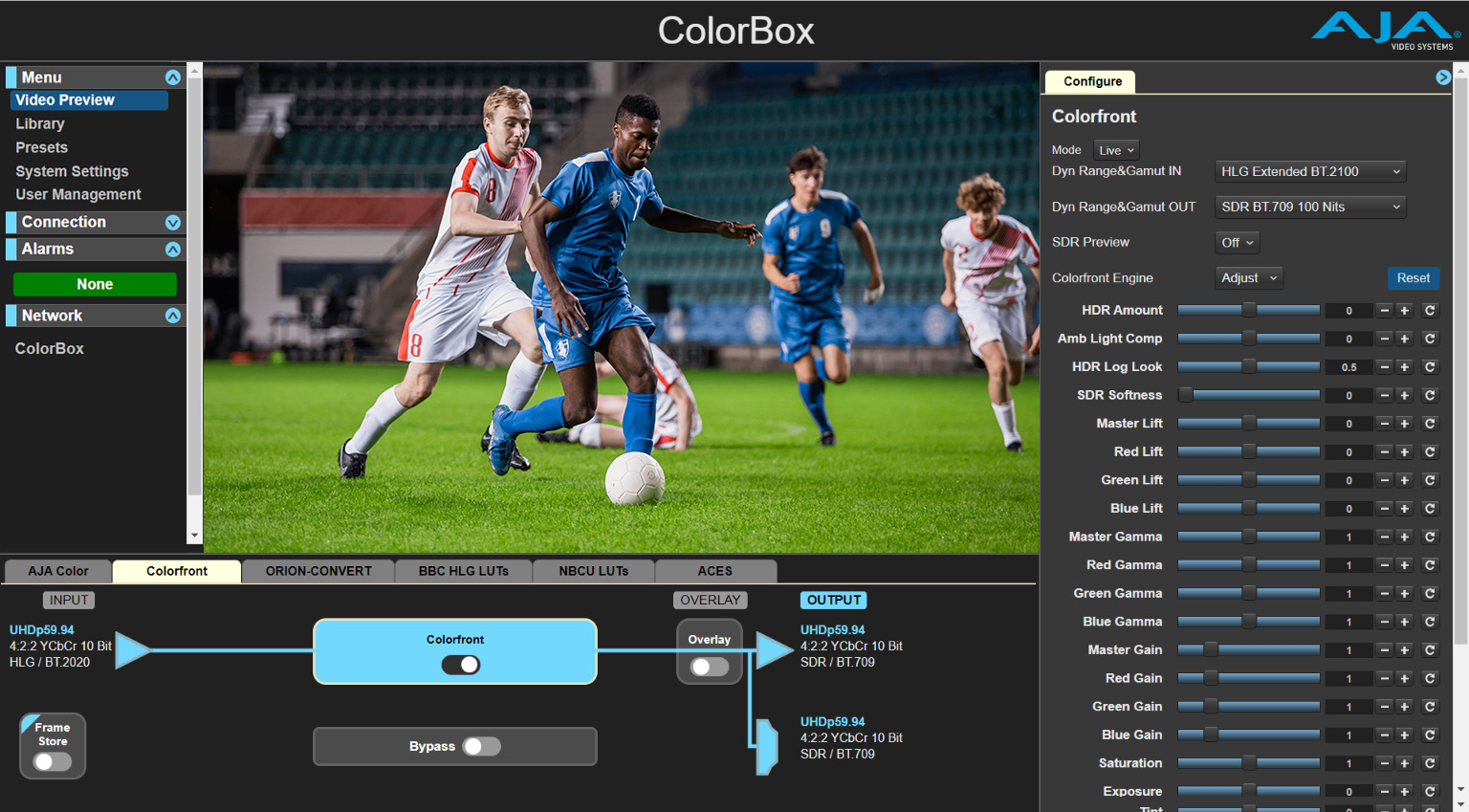

Colorfront Engine Live Mode

Colorfont Engine Live mode is designed primarily for broadcast style workflows, supporting a variety of color space formats, including camera log.

  • SDR, HLG, PQ, Sony, ARRI, RED, Panasonic, and Canon transforms
  • HDR Log Look, SDR Softness, HDR Amount, Ambient Light Compensation, P3 Clamp
  • Adjusting RGB and Master color controls for:
    • Lift, Gamma, and Gain
  • Adjusting for camera correction with Exposure, Color Temp, and Tint
  • SDR Preview

Live mode may be the right choice for you if you're working on broadcast workflows or standard production workflows that require camera Log conversions and you prefer video style color controls (e.g., Lift/Gamma/Gain).

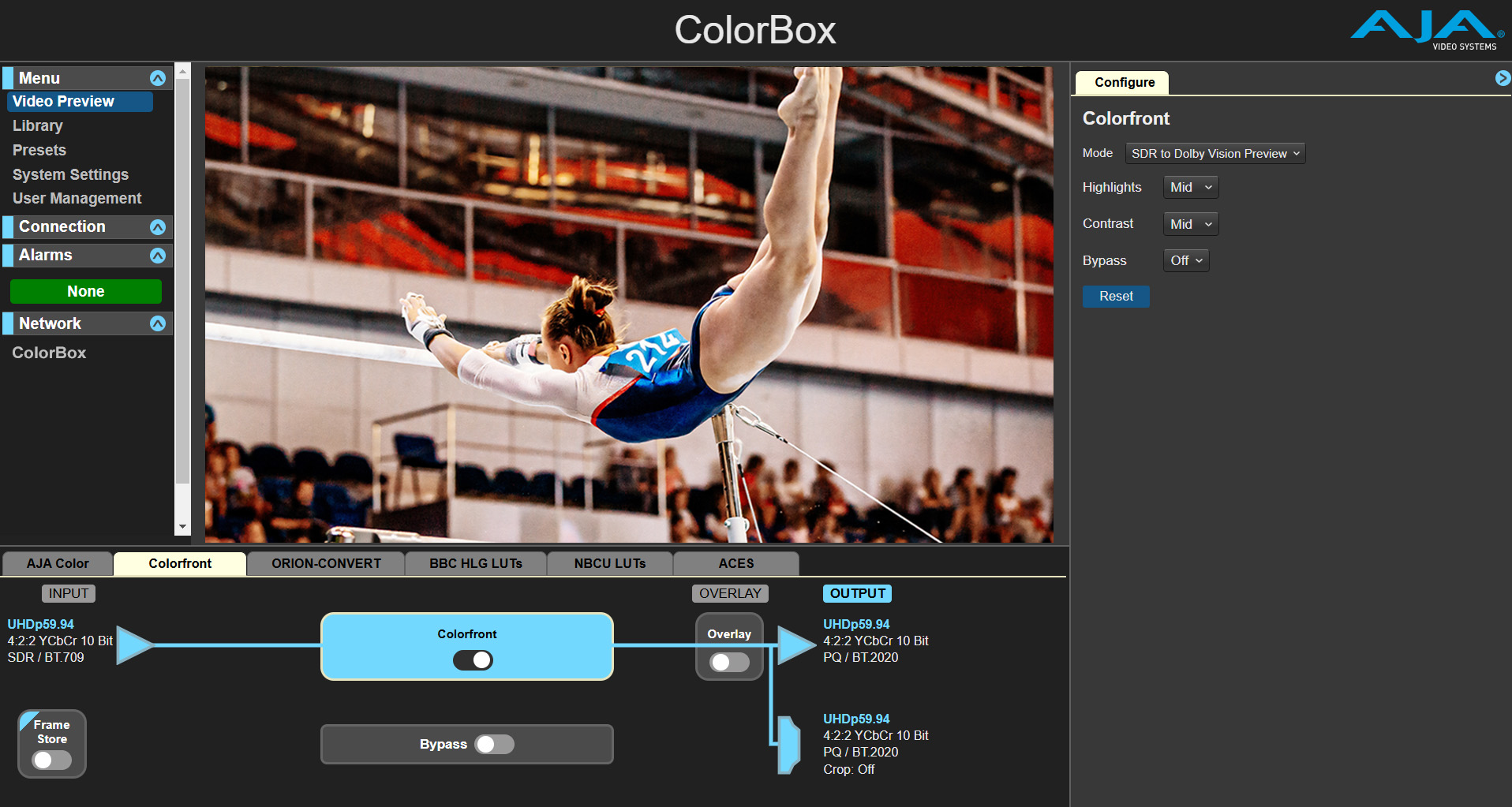

Colorfront SDR to Dolby Vision Preview Mode

Colorfront Engine SDR to Dolby Vision Preview mode provides a controlled set of SDR to Dolby Vision HDR conversion options. The conversion parameters precisely match the color transforms and controls in Transkoder’s SDR2DolbyVision node, with simplified controls for highlights and contrast. While the tool is primarily used for preview, it can also be applied as an SDR to HDR conversion to produce a perceptually matching HDR output.

  • Adjustments for Highlights and Contrast
  • Precisely matches Colorfront Transkoder’s SDR2DolbyVision node
  • Does not generate Dolby Vision metadata

SDR to Dolby Vision Preview mode is particularly suited for SDR to HDR conversions that involve a downstream Dolby Vision workflow. This mode provides a simple set of customizable controls to fine tune the highlight and contrast amounts for an optimal upmapped HDR image.  The SDR to HDR highlight and contrast settings may be reproduced in postproduction, whether for preview in an editorial/color suite equipped with an AJA ColorBox or for producing final deliverables with corresponding Dolby Vision metadata in Colorfront Transkoder.

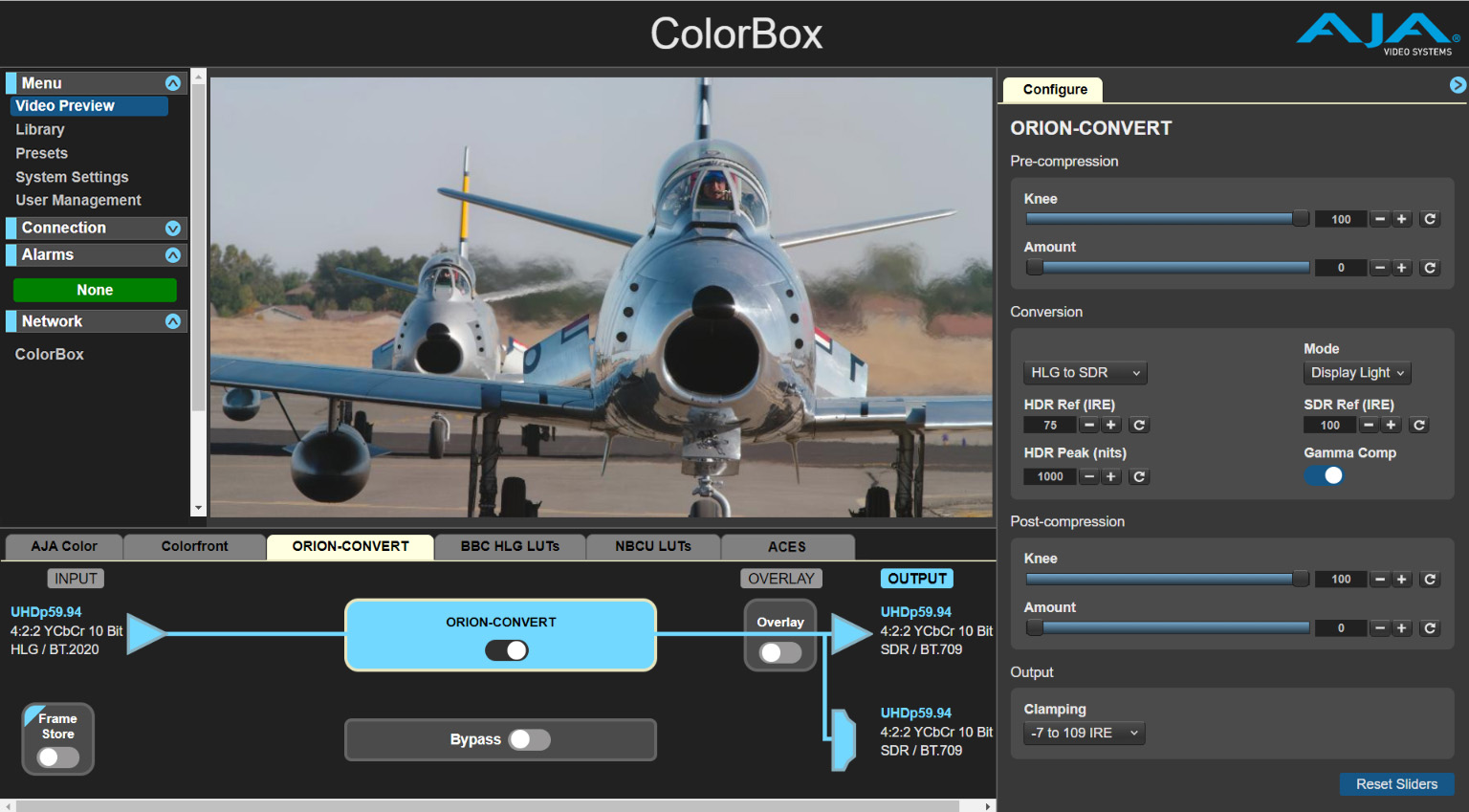

ORION-CONVERT Pipeline

ORION-CONVERT brings the power of Cromorama color science to real time hardware based conversion. This same color science is responsible for the Emmy nominated NBCU LUT based HDR-SDR broadcast workflows, as well as UEFA Euro 2020, Tokyo 2020 Olympics, FIFA 2021 Arab Cup, Beijing 2022 Winter Olympics, and the FIFA 2022 Qatar World Cup, amongst others.

ORION-CONVERT offers the necessary tools for broadcasters to create and deliver the HDR and SDR content consumers expect from a single master HDR workflow by providing critical controls required to set up the right conversion for your production. By being able to set the HDR and SDR reference anchor points in an HDR to SDR conversion, you can target an SDR program output that suits your market's SDR display needs. You can target 200 nits SDR, resulting in a much more representative image for the camera shader and a more vibrant HDR image for the viewer at home, or target a perceptual match at 100 nits SDR. Also, in an HDR to SDR conversion, the unique 2-stage knee offers a pre-conversion compression in HDR only and a post-conversion compression in SDR only, providing very effective roll-off management control. The new Gamma Compensation feature applies the optional OOTF (as described in section 5.1 of ITU-R BT.2408-5) to compensate for the subjective change in appearance between SDR and HDR, ensuring compatibility between different color conversion philosophies.

This is a licensable upgrade and includes:

  • Conversions utilizing floating point math for higher precision results
  • SDR, HLG, and PQ transforms
  • Scene Light and Display Light modes
  • 2-stage Knee adjustment for pre and post-conversion compression or expansion
    • Compression amount control in HDR to SDR conversions
    • Expansion amount control in SDR to HDR conversions
  • Configurable SDR and HDR reference anchor points
  • HDR Peak Nit sets the system gamma for Display Light conversions
  • Gamma Compensation setting to compensate for the subjective change in appearance between SDR and HDR
  • Easy to configure pixel perfect round-tripping
  • Clamping options
  • Full bypass node for 12G-SDI and HDMI
  • Support for ITU BT.2408, Operational Practices in HDR Television Production

Set-ups can be easily replicated utilizing OG-ColorBox preset import and export capabilities.

Optional License $695 US MSRP

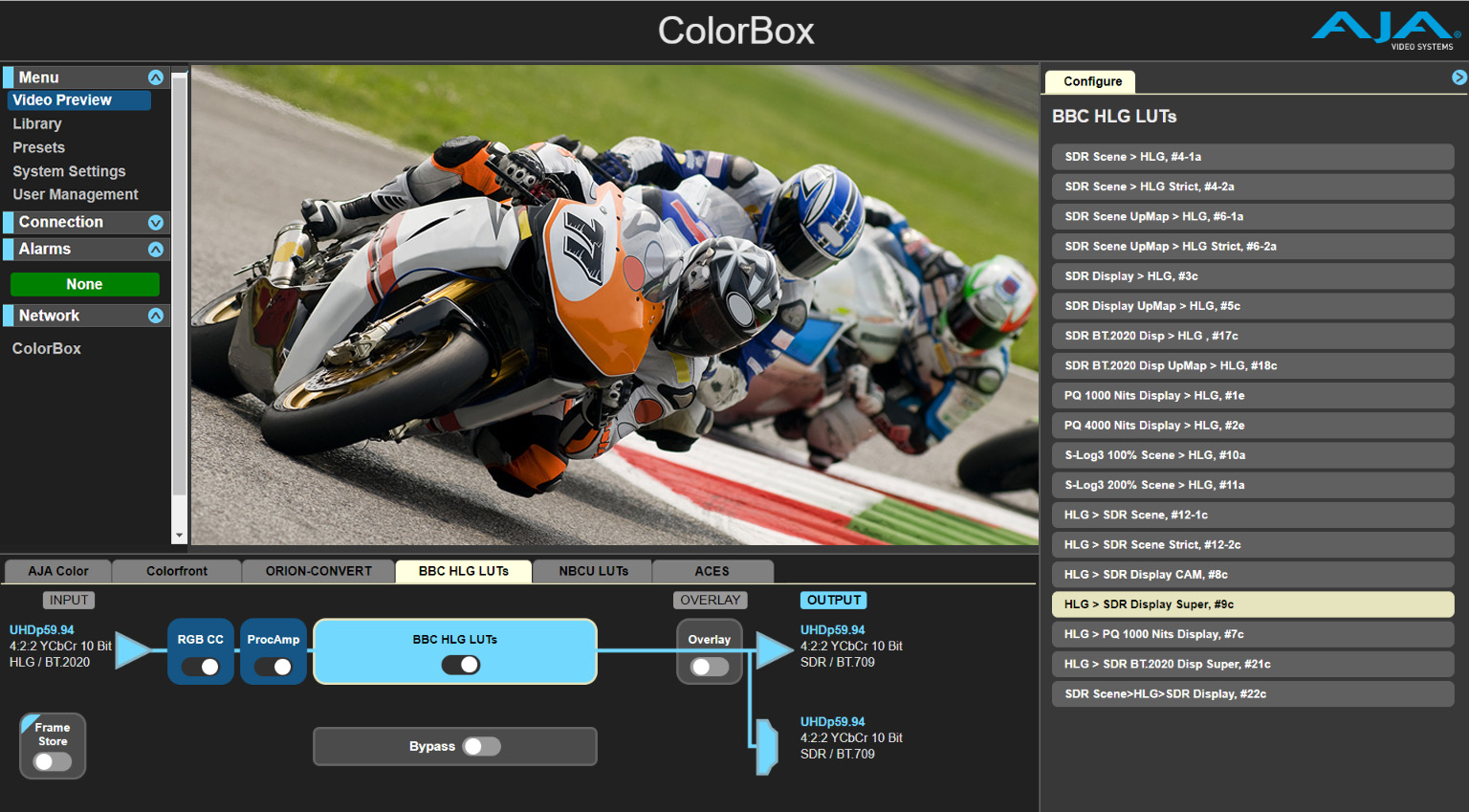

BBC HLG LUT Pipeline

BBC HLG LUTs Pipeline offers additional functionality that adds field proven HDR conversion options, particularly for television broadcasters who are looking for specific conversion criteria.  This mode provides an RGB Color Corrector and Proc Amp to color correct the signal prior to conversion.

This is a licensable option and includes v1.7 BBC HLG LUTs:

  • SDR, PQ, and S-Log3 to HLG
  • HLG to SDR and PQ
  • Scene-light and Display-light conversions
  • Utilizes 33-point Tetrahedral 3D LUT Interpolation
  • Proc Amp and Color Corrector
  • Full bypass node for 12G-SDI and HDMI 2.0
  • Support for mathematical HLG HDR dynamic range mapping per ITU BT.2408

BBC HLG LUT Conversions

  • SDR Scene Referred (SR) to HLG
  • SDR Scene Referred (SR) to HLG Strict
  • SDR Scene Referred (SR) UpMap to HLG
  • SDR Scene Referred (SR) UpMap to HLG Strict
  • SDR Display Referred (DR) to HLG
  • SDR Display Referred (DR) UpMap to HLG
  • SDR BT.2020 Display Referred (DR) to HLG
  • SDR BT.2020 Display Referred (SR) UpMap to HLG
  • PQ 1000 Nits Display Referred (DR) to HLG
  • PQ 4000 Nits Display Referred (DR) to HLG
  • S-Log3 100% Scene Referred (SR) to HLG
  • S-Log3 200% Scene Referred (SR Live) to HLG
  • HLG to SDR Scene Referred (SR)
  • HLG to SDR Scene Referred (SR) Strict
  • HLG to SDR Display Referred (DR) Color Appearance Model (CAM)
  • HLG to SDR Display Referred (DR) Super White
  • HLG to PQ 1000 Nits Display Referred (DR)
  • HLG to SDR BT.2020 Display Referred(DR) Super White
  • SDR Scene Referred (SR) to HLG to SDR Display Referred (DR)

Set-ups can be easily replicated utilizing OG-ColorBox preset import and export capabilities.

Optional License $145 US MSRP

Ultra-Low Latency

OG-ColorBox processing takes no time at all. With total latency of less than ½ of a video line, a live signal can be processed and output in real time to meet the critical + - half line input timing requirement of most production switchers. This also reduces lip sync issues in live event productions where every frame counts and anywhere high quality, low latency video processing is required. Applications span from IMAG to LED Volumes to in-camera VFX and everywhere in between.

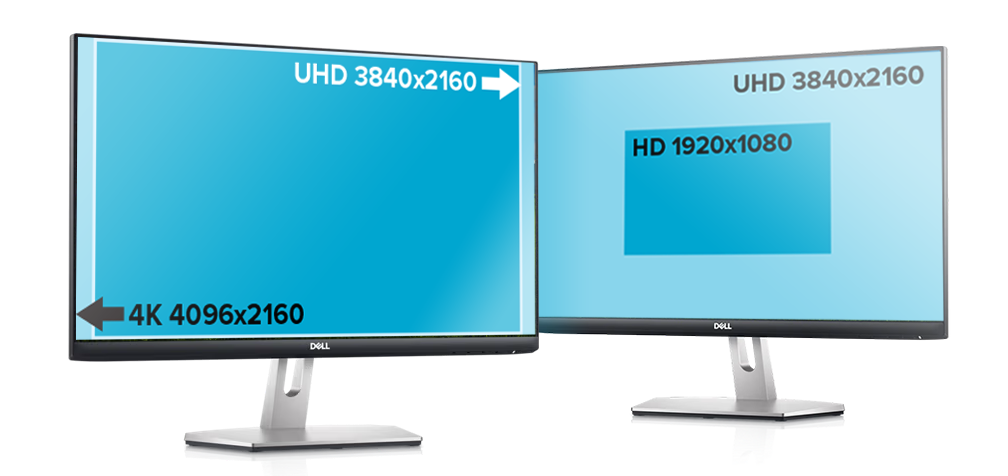

4K/UltraHD Down-conversion and 4K/2K Crop

New down-conversion feature for SDI and HDMI outputs with independent conversions per output available for all pipelines. With this feature, you can now down-convert either or both the SDI and HDMI outputs to a lower resolution. Full 4K > 2K or UltraHD > HD (1920x1080). For example, using a high resolution camera with a 4K or UltraHD baseband output and on-set monitoring needs to be in HD.

There is also a new 4K/2K Crop for the HDMI output for HDMI monitors that don’t support full 4K or 2K resolutions. By offering the crop function, OG-ColorBox can center crop the image and provide an unscaled image on the HDMI output that is compatible with a wider range of UltraHD and HD displays.

4K/UltraHD Frame Capture and Recall

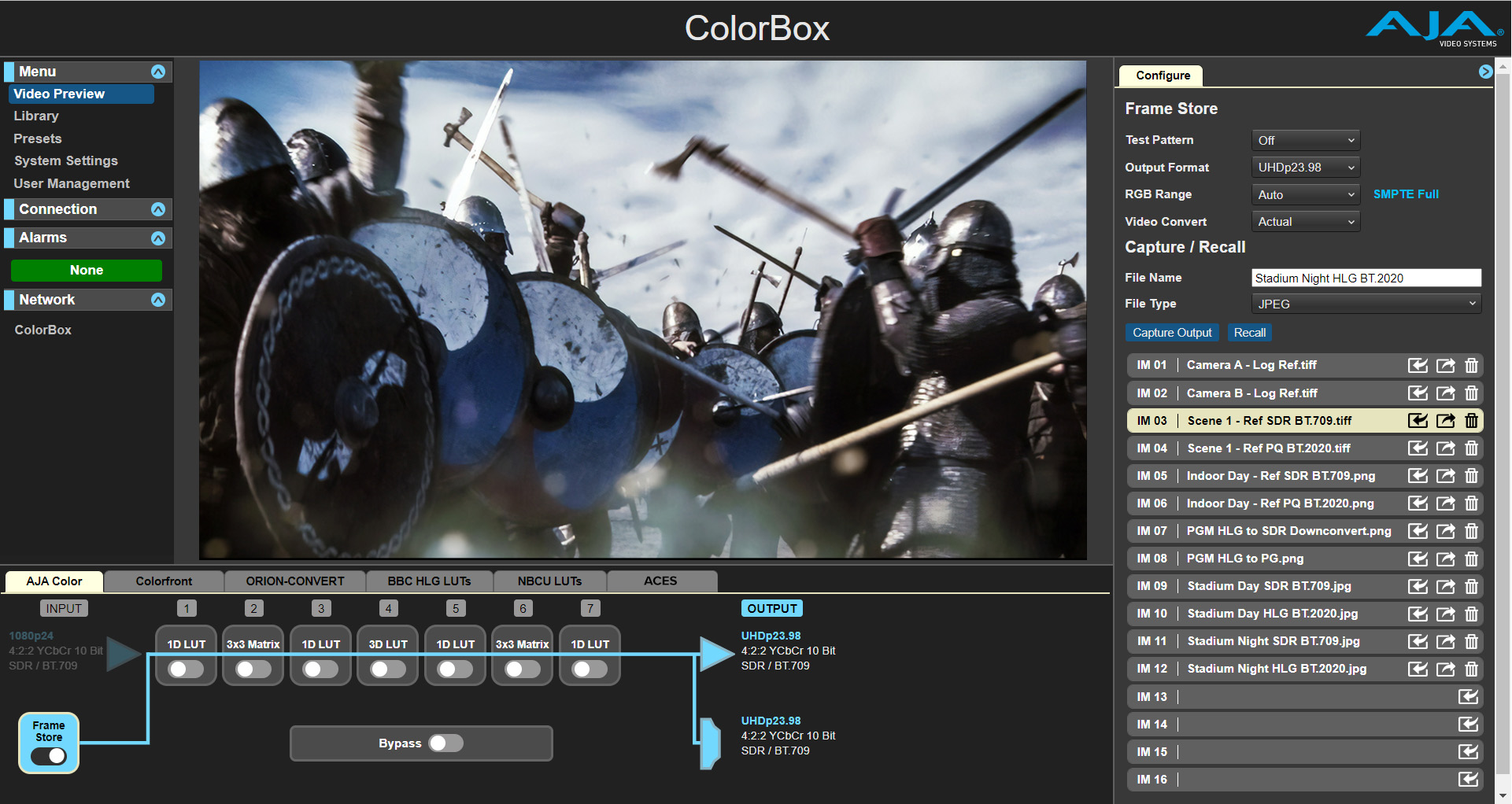

Unique to a device in its class, OG-ColorBox has incredible frame capture and recall up to 4K/UltraHD 16-bit .tiff files, allowing you to capture pre or post processed reference images. Multiple use cases are possible, from VFX composite checks to look comparisons between takes to ensure consistency and general reference image capture, recall, and import/export to validate the color processing pipeline. Frames can be stored locally on OG-ColorBox for easy access or saved directly to a computer running 3rd party software like Livegrade and Assimilate. Capture or recall up to 16 full resolution images locally with an option to include the Overlay if needed. If the resolution of the image doesn’t match your target format, OG-ColorBox can even scale it to fit.

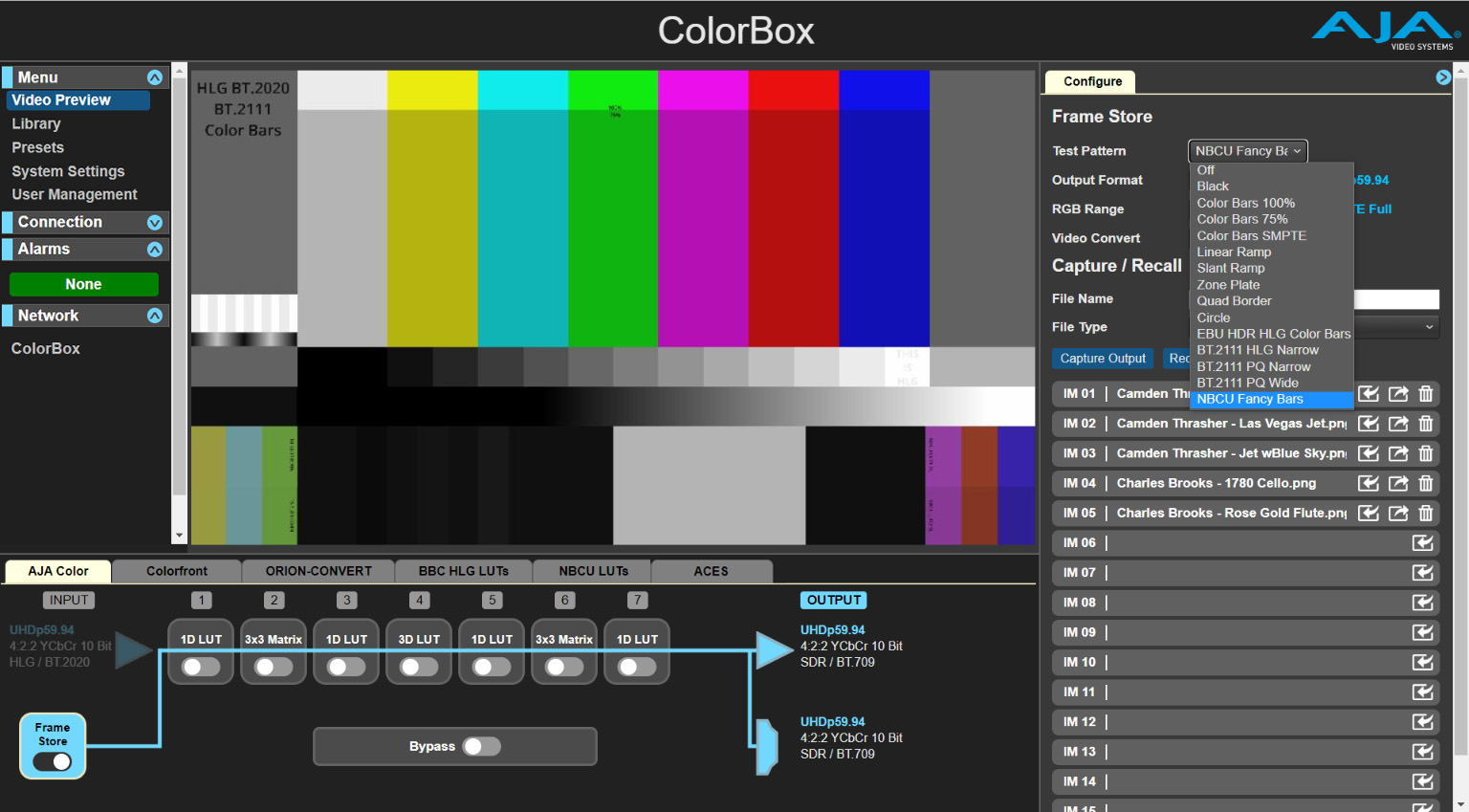

Test Pattern Generator

OG-ColorBox can also output standard test patterns without the need for an active input. OG-ColorBox test patterns can be used in any number of scenarios where a test signal is needed rather than a source signal. The test patterns are configurable to output a wide range of video formats and frame rates, including up to 4K/UltraHD.

RGB Color Correction and Proc Amp

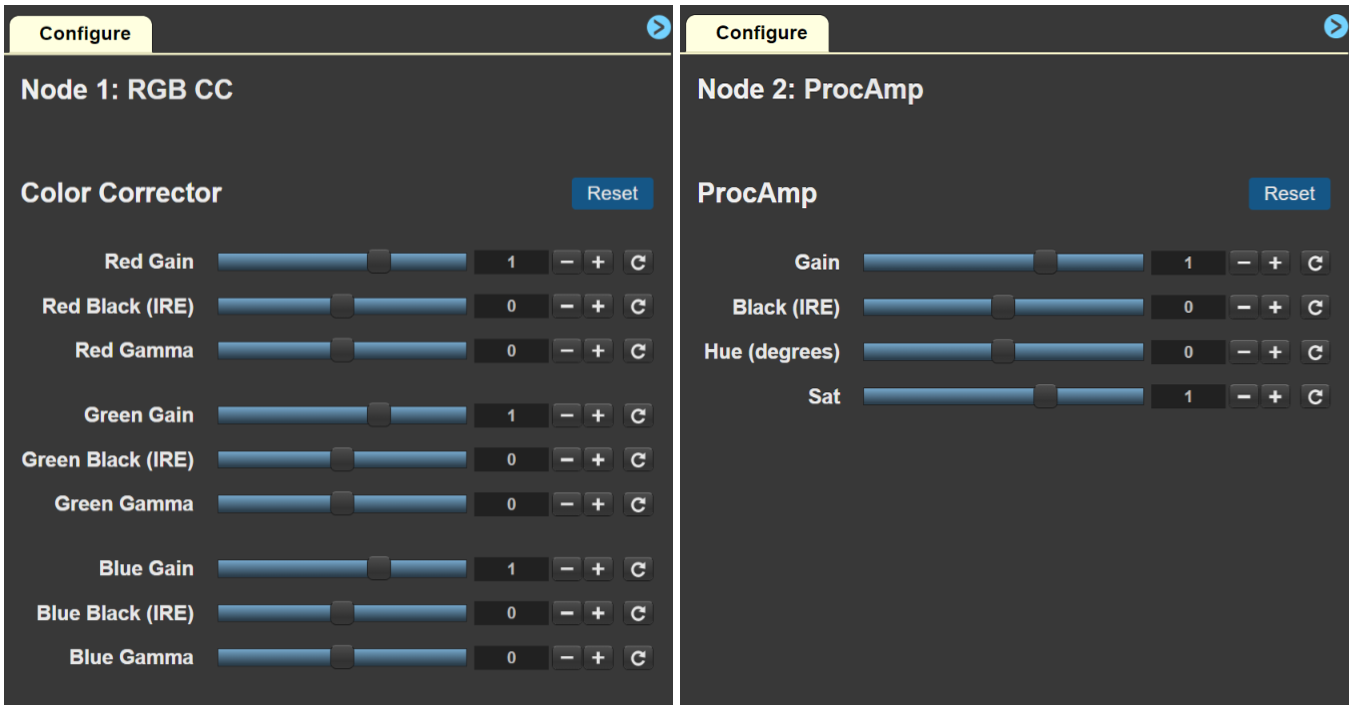

In AJA Color Pipeline, the 1D LUTs can be configured as RGB Color Correctors and the 3x3 matrices as Proc Amps. This allows for source color correction and image control prior to or after performing a 3D LUT transform, ensuring the best possible conversion. BBC HLG LUTs and NBCU LUTs pipelines also offer an RGB Color Corrector and Proc Amp prior to 3D LUT processing.

Advanced Overlay and ANC Metadata Management

OG-ColorBox offers several important features, from overlaying selected metadata and user data on the video for live use, capturing or embedding in the .tiff file for later use, or just passing ANC metadata to the next SDI device or application using the OG-ColorBox API via Ethernet. By storing the ANC data, one can quickly come back to and recall the exact camera settings, pipeline configuration, etc., that created an image. OG-ColorBox also offers a customizable user text field that is great for overlaying any information on an image needing to be conveyed to an observer, such as camera or lens information, if the camera can’t provide it.

When setting up a shot, many factors need to be considered when framing it. The camera manufacturer, the sensor size, the lens, and the target aspect ratio all play a role. The ability to see frame lines on-set gives the production the best chance at capturing the shot composition correctly for the project from the get-go. OG-ColorBox also offers a User Overlay, providing the ability to import and overlay custom images onto the output. Those images could be frame lines or any other image, such as a mask to dim camera status overlays, logos, etc., imported as .png files to the Overlay library and recalled along with or without the already available overlay information.

User Text and User Overlay can also be stored on the captured image as part of the Overlay. Additional Overlay accessible data includes Input and Output VPID, Timecode presence, Closed Captioning presence, and Pipeline Configuration. Output HDMI infoframe status is also available in the UI.

The Largest Onboard Libraries Available

OG-ColorBox offers the largest library capacity of any equivalent device in its class, providing a wealth of creative choices on-set or anywhere in the production pipeline. Set up an easy to access bank of options for any shoot, then recall the same settings just as easily in post. Sixteen onboard memory slots are available for each category of supported files: 1D LUTs, 3D LUTs, 3x3 Matrices, Images, Overlays, and AMFs.

Ten pipeline presets can be stored per pipeline, and all can be imported and exported to/from OG-ColorBox. Pipeline Presets store all settings needed to replicate a configured transform. Included is also a Startup Preset setting that allows an operator to select a specific preset to be loaded upon power up, guaranteeing a known startup state. The Pipeline Presets for AJA Color Pipeline stores all files loaded into the pipeline, active or not, for easy setup and transfer between OG-ColorBox devices.

ARRI LogC4 Wireless WVO Support

The ARRI ALEXA 35 camera captures 17 stops of dynamic range, 2.5 stops more than previous ARRI digital cameras. This expanded dynamic range is great for cinematographers. However, it cannot be contained in the LogC3; therefore, a new encoding had to be created, LogC4. LogC4 encodes the signal differently and appears as a very low contrast signal that some wireless transmitters and receivers aren’t able to properly process and results in banding artifacts.

Wireless Video Optimized LogC4 (WVO LogC4) is an intermediate encoding for ALEXA 35 SDI outputs that is designed to improve monitoring image quality when transmitting LogC4 over wireless video transmitters. The WVO encoding is an option built into the ALEXA 35. A matching ARRI WVO decoding LUT must be used after signal reception to reconstitute regular LogC4.

That’s where OG-ColorBox comes in. The matching ARRI WVO decoding LUT is built into the 1D LUT options in the AJA Color, Colorfront, and ACES pipelines. By having this built into the OG-ColorBox, we are making LogC4 easier to deploy with existing equipment, saving both time and money.

Flexible Control via LAN

Access to the intuitive WebUI control with Video Preview for confidence monitoring from a standard web browser over the LAN.

UltraHD Live Production Workflow HDR Conversion and Management

In this live television OB truck production workflow, we see a number of 12G-SDI outputs from UltraHD television camera systems that are passed to a number of OG-ColorBoxes via the 12G-SDI in. SDR to HDR conversion is provided by the OG-ColorBox units, in this case converting each input to be HLG on the output to suit the needs of the current live production single master HDR workflow. OG-ColorBoxes on the output of the switcher convert HLG to different deliverable formats, including SDR and PQ.  As sources are added, more OG-ColorBox units can be included easily to accommodate the production as it scales.

Download Workflow

Partner Integrations

To control the rich feature set of ColorBox beyond the built-in web UI, ColorBox offers a comprehensive set of tools to enable third parties to develop their own native control.  Using a RESTful API defined using OpenAPI, the protocol is presented intuitively, allowing both humans and computers to discover, interact, and understand OG-ColorBox capabilities. To support developers, several OpenAPI generated programming language implementations are included with example projects, visit the OG-ColorBox Support page.

CyanView

“When producing live events with cine-style cameras, camera shading is often combined with live post-processing adjustments. AJA OG-ColorBox provides a flexible hardware processing solution with nodes that ensure accurate mappings as multiple camera types and brands are implemented, and unprecedented color fidelity for live and postproduction HDR/SDR workflows,” shared David Bourgeois, CEO & Founder, CyanView. “CyanView RCP combines multiple integrations to provide a seamless hardware interface similar to a typical broadcast workflow, and gives OG-ColorBox users more tactile control over these functions. Its intuitive control panel buttons combined with the color accuracy of OG-ColorBox make it easy for the operator to complete camera shading and grading adjustments during live shows as efficiently as if they were done in camera.”

https://www.cyanview.com/

SKAARHOJ

“SKAARHOJ is excited to integrate AJA OG-ColorBox with our RCP broadcast controllers and Blue Pill platform. Together, these solutions will support best practices out of the box and enable endless color control possibilities,” shares SKAARHOJ CEO, Founder, and Chief Designer Kasper Skårhøj.

https://www.skaarhoj.com/

Pomfort

“Pomfort’s Livegrade products deliver comprehensive digital imaging systems for demanding productions, tying together look management and on-set monitoring integrated with a wide range of camera workflows and setups,” says Patrick Renner, Head of Product at Pomfort. “AJA’s OG-ColorBox enables us to dynamically control 3D LUTs in Livegrade, getting framegrabs via Frame Store, and pulling ancillary data, including camera and lens metadata, into source signals.” Pomfort Livegrade officially carries the ACES Logo and  OG-ColorBox is the perfect partner for an end-to-end ACES workflow.

https://kb.pomfort.com/livegrade/setting-up-devices/setting-up-aja-colorbox/

QTAKE Video Assist

QTAKE Video Assist software natively controls ColorBox as an external real time color processor utilizing the 33pt. 3D LUT and up to 4K/UltraHD resolution within the AJA Color Pipeline (ACP) mode, to provide support for the highest quality external color processing device currently available in QTAKE. This support is provided within the QTAKE Video Assist application as a part of GRADE Module.

https://qtakehd.com/

Assimilate

“AJA OG-ColorBox takes color managed workflows to a whole new level, providing sophisticated color pipeline setups unlike anything we’ve seen before,” shared Mazze Aderhold, Chief Strategic Workflow Engineer at Assimilate. "Professionals can use the OG-ColorBox to combine multiple LUTs and color matrices to ensure their desired look with an intuitive WebUI that makes it easy to operate. We’re proud to continue advancing look management workflows for live and virtual production with Live Looks and Live Assist support for OG-ColorBox.”

https://www.assimilateinc.com/

Calman

Portrait Displays’ Calman display calibration software natively controls ColorBox to generate high quality custom test patches necessary for professional display calibration. In addition, it takes advantage of the AJA Color Pipeline and its 1D and 3D LUTs to apply the calibration.

"Portrait Displays is excited to integrate Calman, the world’s leading calibration software, with AJA’s ColorBox. With built-in pattern generation and the ability to optimize displays with both 1D and 3D LUTs, creatives now have a sophisticated toolset for highly accurate calibrations of any display via HDMI or SDI." – Scott Anderson, CPO & EVP.

https://www.portrait.com/

Light Illusion's

LIGHT ILLUSION’s ColourSpace display calibration software natively controls ColorBox to generate high quality custom test patches necessary for professional display calibration. In addition, it takes advantage of the AJA Color Pipeline and its 1D and 3D LUTs to apply the calibration.

https://www.lightillusion.com/

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

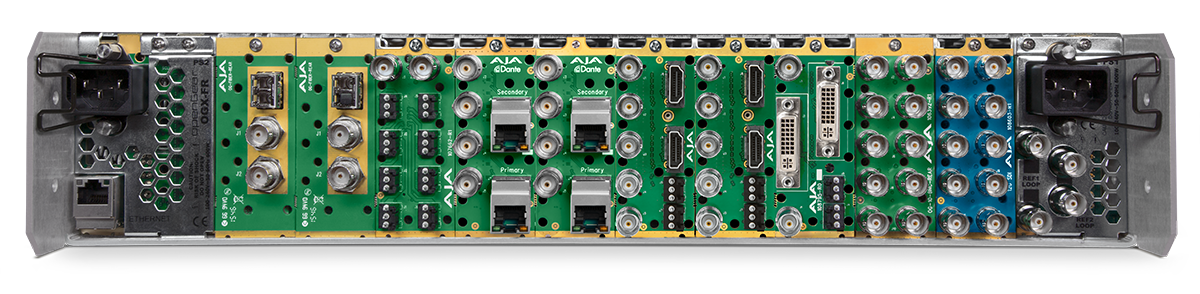

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Tech Specs

Print Tech Specs

HDR/WCG Real Time Processor

  • HDR Conversions
    • HDR to HDR
    • HDR to SDR
    • SDR to HDR
  • Colorimetry
    • BT.709 and BT.2020

Video Formats

  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p

Color Processing Pipeline

  • Processes in 12-bit RGB
  • 6x pipelines; AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs, ACES
  • 7x processing nodes plus Overlay in AJA Color; 4x 1D LUTs, 2x 3x3 Matrices, 1x 3D LUT

AJA Color Pipeline (ACP)

  • 7x nodes in order of processing:
    • 1D LUT, 3x3 Matrix, 1D LUT, 3D LUT, 1D LUT, 3x3 Matrix, 1D LUT, Overlay
  • 3D LUT configurable as LUT or Dynamic
    • Supports custom 33-point .CUBE, .SPI3D, and .3DL format 3D LUTs*
  • 1D LUTs configurable as LUT, Dynamic, or Color Corrector
    • Supports custom 10 and 12-bit .CUBE and .SPI1D format 1D LUTs, .CLF and .CTF
  • 3x3 Matrices configurable as Matrix, Dynamic, or Proc Amp
    • Supports custom .SPIMTX format matrices
  • Tetrahedral 3D LUT interpolation
  • Configurable Color Space, Range, and Transfer Characteristic
  • ARRI Alexa 35’s Wireless Video Optimized LogC4 (WVO) Decoder
  • Nonvolatile storage of 16x 3D LUTs, 16x 1D LUTs, and 16x 3x3 Matrices
  • Overlay



*Various 3D LUT sizes are supported but will be converted to 33-point for processing

Dynamic LUT Processing

  • Supports third party apps for automatic loading and display of 3D LUTs
  • Reflects dynamic changes in real time from source software
  • Full frame LUT processing
  • Supported by
    • Pomfort Livegrade Pro and Studio
    • Assimilate Live Looks and Live Assist
    • QTAKE Video Assist

Colorfront Pipeline

  • Processing Based on Human Perception Model
  • Perceptually optimized color volume remapping
  • Preserves the original creative intent
  • TV Mode for applications such as television broadcast
  • Live Mode for applications such as broadcast, OTT, A/V
  • SDR to Dolby Vision Preview Mode for applications such as broadcast and postproduction
  • Input Video Dynamic Range/Color Gamut (varies by mode)
    • SDR BT.709 100 Nits
    • SDR Extended BT.709
    • PQ BT.2020 1000 Nits
    • PQ P3D65 1000 Nits
    • Hybrid Log Gamma BT.2100
    • HLG Extended BT.709
    • HLG Extended BT.2100
    • Sony S-Log3 S-Gamut3
    • Sony S-Log3 S-Gamut3 Cine
    • Sony S-Log3 BT.2020
    • ARRI Log C Wide Gamut
    • ARRI LogC4 Wide Gamut 4
    • ARRI LogC4 Wide Gamut 4 WVO
    • Panasonic V-log
    • RED Log3G10 Wide Gamut
    • Canon Log 2
    • Canon Log 3
  • Output Video Dynamic Range/Color Gamut (varies by mode)
    • SDR BT.709 100 Nits
    • SDR Extended BT.709
    • PQ BT.2020 1000 Nits
    • PQ BT.2020 ConstrainP3
    • PQ P3D65 1000 Nits
    • Hybrid Log Gamma BT.2100
    • HLG Extended BT.709
    • HLG Extended BT.2100
    • Sony S-Log3 S-Gamut3
    • Sony S-Log3 BT.2020
    • ARRI Log C Wide Gamut
    • ARRI LogC4 Wide Gamut 4
  • TV Mode controls
    • Highlight management: Brightness, Highlight, Super Highlight
    • Colorfulness control for managing the Hunt Effect
    • Color Correction: Lift, Gamma, Gain, Saturation
    • Camera Correction: Exposure, Color Temp, Tint
    • Roundtrip control ensures technical match
    • Clamp to Legal
  • Live Mode controls
    • SDR Preview
    • HDR Amount
    • Ambient Light Compensation control
    • HDR Log Look
    • SDR Softness control
    • Color Correction: Lift, Gamma, Gain, Saturation
    • Camera Correction: Exposure, Color Temp, Tint
    • PQ Output Nit level: 48-4000 Nit
    • PQ Output P3 Colorspace Clamp
    • ITU-R BT.2408 Mode control
  • SDR to Dolby Vision Preview controls
    • Highlights: Low, Mid, High
    • Contrast: Low, Mid, High
  • Overlay

ORION-CONVERT Pipeline

  • Conversion algorithm that uses floating point math
  • Pre and post transform Knee and Amount controls
  • Display-Light and Scene-Light Modes
  • Configurable HDR and SDR IRE Reference anchor points
  • Configurable HDR Peak Nits sets system gamma for display light conversions
  • Gamma Compensation
  • Configurable Output Clamping
  • Input Video Dynamic Range/Color Gamut
    • SDR BT.709
    • PQ BT.2020
    • HLG BT.2100
  • Output Video Dynamic Range/Color Gamut
    • SDR BT.709
    • PQ BT.2020
    • HLG BT.2100
  • Overlay

BBC HLG LUTs Pipeline

  • Mathematical dynamic range mapping per ITU-R BT.2408
    • SDR/BT.709 Scene Referred to HLG/BT.2100 v1.7
    • SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.7
    • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.7
    • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.7
    • SDR/BT.709 Display Referred to HLG/BT.2100 v.1.7
    • SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.7
    • SDR/BT.2020 Display Referred to HLG/BT.2100 v1.7
    • SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.7
    • PQ 1000 Nits Display Referred to HLG/BT.2100 v1.7
    • PQ 4000 Nits Display Referred to HLG/BT.2100 v1.7
    • S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.7
    • S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.7
    • HLG/BT.2100 to SDR/BT.709 Scene Referred v1.7
    • HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.7
    • HLG/BT.2100 to SDR/BT.709 Display Referred Color Appearance Model v1.7
    • HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.7
    • HLG/BT.2100 to PQ 1000 Nits Display Referred v1.7
    • HLG/BT.2100 to SDR/BT.2020 Display Referred Super White v1.7
    • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 to SDR/BT.709 Display Referred v1.7
  • RGB Color Corrector and ProcAmp
  • Overlay

NBCU LUTs Pipeline

  • NBCU LUTs developed by NBCUniversal Media, LLC
    • 1-NBCU_SDR2HLG_DL_v1.1, SDR UpMap to HLG using Display Light v1.1
    • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0
    • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1
    • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0
    • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0
    • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.0
  • RGB Color Corrector and ProcAmp
  • Overlay

ACES Pipeline

  • ACES Metadata File (AMF) processing
  • Implementation using ACES v1.3
  • Built using OpenColorIO (OCIO)
  • ARRI Alexa 35’s Wireless Video Optimized LogC4 (WVO) Decoder
  • Nonvolatile storage of 16x AMFs
  • Overlay

Video Input and Output SDI

  • 1x 12G-SDI Input BNC, SMPTE-292/424/2081/2082
  • 2x 12G-SDI Output BNCs, SMPTE-292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10 or 12-bit
  • 1x 12G-SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6G-SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 1x 3G-SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 47.95, 48, 50
    • (2K) 2048x1080PsF 23.98, 24, 25
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 1.5G-SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60



Note: Raster and Frame Rate Dependent, please see OG-ColorBox Video Formats in Documents and Manual

Video Output HDMI

  • 1x HDMI Type A connector*, HDMI v2.0b
  • HDR infoframe generation with pass-through for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
  • 4K/UltraHD/2K/HD
  • 4K/2K Crop to UltraHD or HD



*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio)
Note: Raster and Frame Rate Dependent, please see OG-ColorBox Video Formats in Documents and Manual

Video Processing

  • Nominal video delay is less than 0.5 of a video line and less than 4.5 video lines when down-converting
  • Motion adaptive deinterlacer
  • Proc Amp controls
  • Color corrector
  • Legalizer

Down-Conversion

  • Hardware 10-bit
  • Independent down-conversion for SDI and HDMI outputs
    • 4K to 2K or UltraHD to HD (1920x1080)

Frame Store

  • Capture and Recall up to 4K/UltraHD 16-bit .TIFF
  • Capture and Recall .TIFF, .PNG, .JPEG
  • Capture input or output
  • Nonvolatile storage of 16 images

Test Pattern Generator

  • 10 or 12-bit
  • 14x patterns built-in
  • SDR and HDR test patterns

Ancillary Data

  • All embedded ANC packets pass-through, including camera ancillary data

Overlay

  • User Text
  • Input and Output ancillary information, including VPID
  • Timecode presence
  • Closed Captioning presence
  • Pipeline Configuration
  • User Overlay, Recall .PNG overlay images up to 4096x2160
  • Nonvolatile storage of 16 overlays

Audio Input Digital

  • SDI embedded audio, 24-bit, 16-channel

Audio Output Digital

  • SDI embedded audio, 24-bit, 16-channel
  • HDMI embedded audio, 24-bit, 8-channel

Network Interface

  • 1x RJ-45, 10/100/1000 Ethernet
  • Embedded web server for remote control
  • REST Interface

USB Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux
  • Web User Interface
  • DIP Switches

Presets

  • 10 Pipeline Presets per mode (AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs, ACES)
  • Startup Preset

Size (w x d x h)

  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card



Weight

  • 0.7 lb (0.3 kg)



Power

  • openGear frame compatible, 19 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Software License Agreement

Contact Support

180 Litton Drive, Grass Valley, CA 95945 USA
Phone: +1-530-271-3190, Fax: +1-530-271-3140
Email: support@aja.com

Ask us a question

Register Your Product

Register your AJA product to help us provide you with the highest quality technical assistance.

Register Now

X

Sign-up with AJA!

Receive the latest news and product update information

Submit and Download

Continue to Download without Sign-up

Your details will be registered with the AJA Video Systems database to receive occasional news of important software updates, new products and services. Please view our privacy policy for more information.
