Io and T-TAP Pro: Thunderbolt Mac and PC Configurations

The AJA support and engineering team target only Enterprise Class Mobile Workstations. These have been tested as capable of 4K/UltraHD/2K/HD workflows for the Io and T-TAP product line.

Thunderbolt Quick Start Guide


*PC Mobile Workstations have been tested against Windows 10/11 and Ubuntu 20.04/22.04

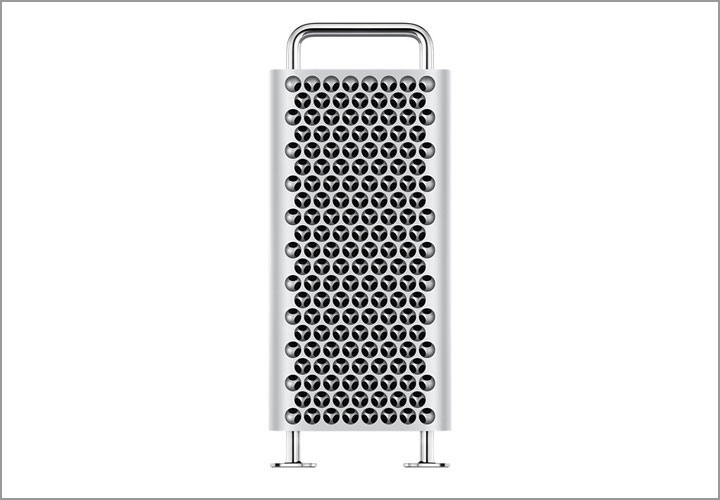

Apple Mac Pro M2

Mac Pro M2 14,8
M2 Ultra 24 Core
64GB Ram

Number of TB Ports: 6
AJA Desktop Software v.17.0

macOS Version 13.2
AJA Desktop Software v.17.0

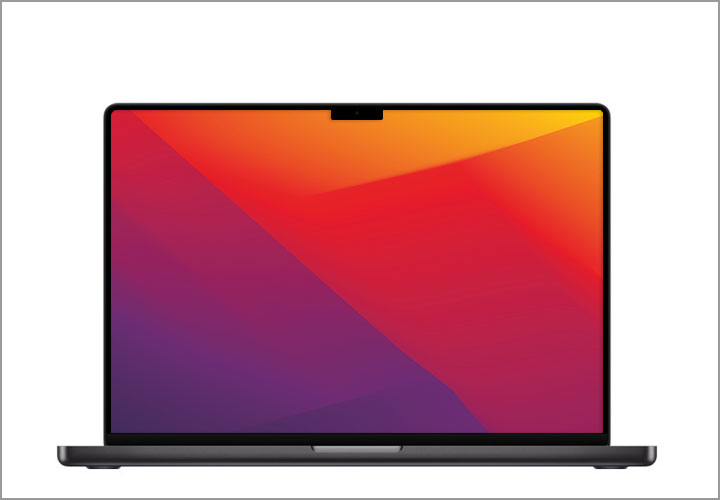

Apple MacBook Pro M2

MacBook Pro M2 Max 14,6
M2 Pro 12 Core
32GB Ram

Number of TB Ports: 3
AJA Desktop Software v.17.0

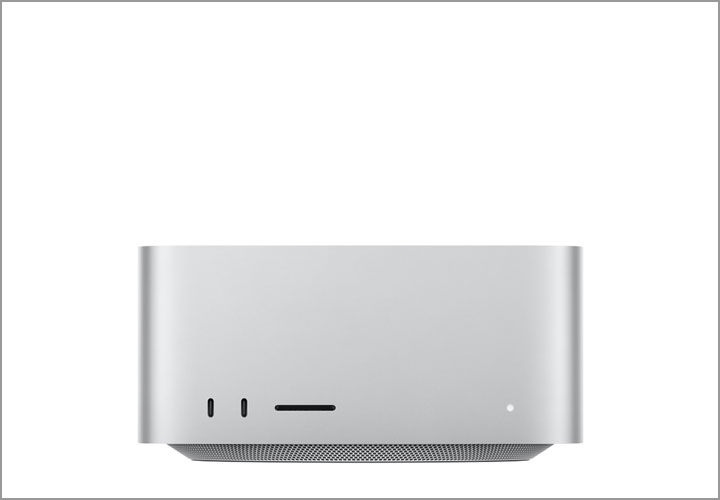

Apple Mac Studio Ultra M2

MacBook Pro M2 Max 14,6
M2 Pro 12 Core
32GB Ram

Number of TB Ports: 3
AJA Desktop Software v.17.0

Apple Mac Mini Pro M2

Mac Mini Pro M2 14,12
M2 Pro 10 Core
16GB Ram

Number of TB Ports: 4
AJA Desktop Software v.17.0

Apple Mac Pro Intel 2019

Mac Pro 7,1
3.2 Ghz 16/32 Core
32GB Ram
AMD Radeon Pro 580X

Number of TB Ports: 4
AJA Desktop Software v.16.0

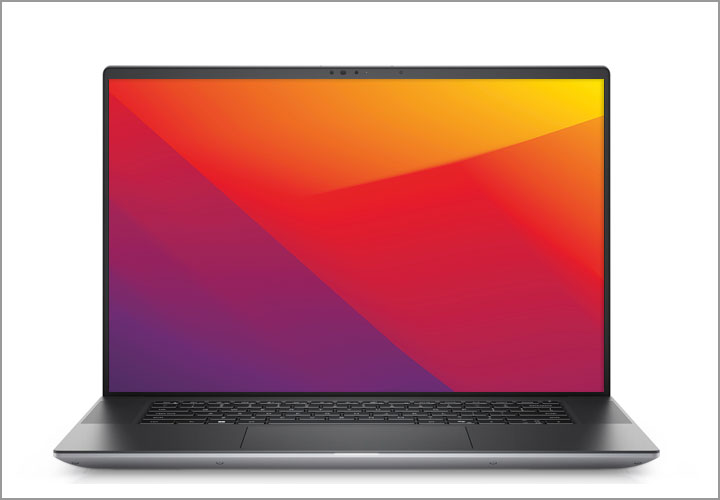

Dell Precision 5690

Core Ultra 9 185H 2.5 Ghz 16/22 Core
32GB
512GB NVMe
Nvidia RTX 3500 Ada

Number of TB Ports: 2 (1 for charging)
AJA Desktop Software v.17.0

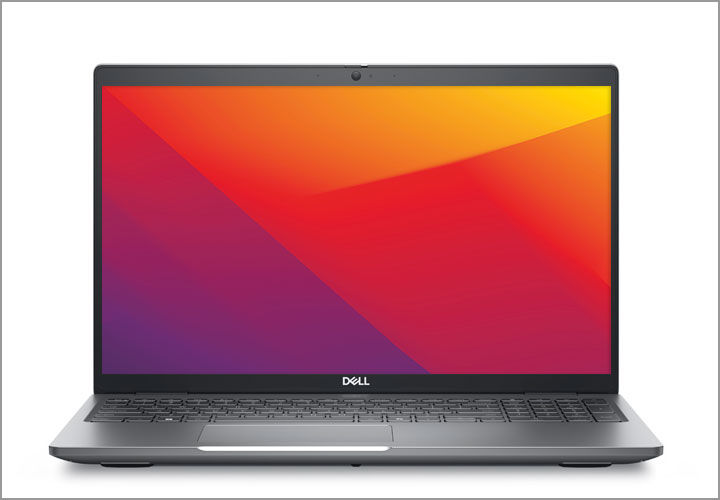

Dell Precision 3591

Core Ultra 7 165H 1.4Ghz 16/22 Core
32GB
1TB
Nvidia RTX 500 Ada
Intel Arc Graphics

Number of TB Ports: 2 (1 for charging)
AJA Desktop Software v.17.1

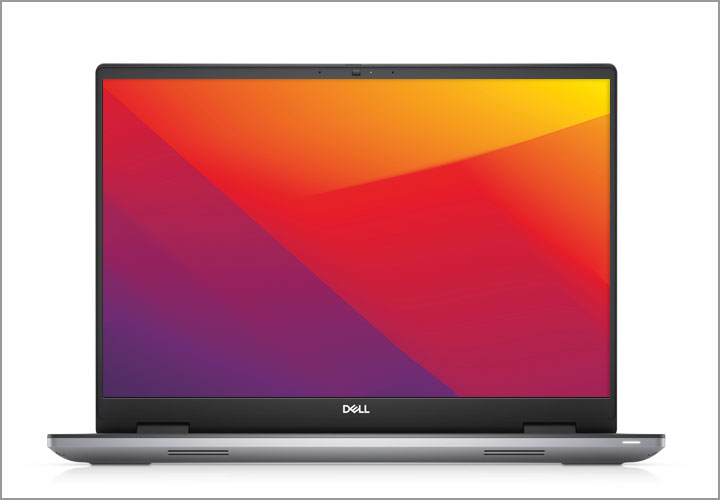

Dell Precision 7680

i7-13850HX 2.1 Ghz 20/28 Core
64GB
1TB
Nvidia RTX 1000 Ada

Number of TB Ports: 2
AJA Desktop Software v.17.1

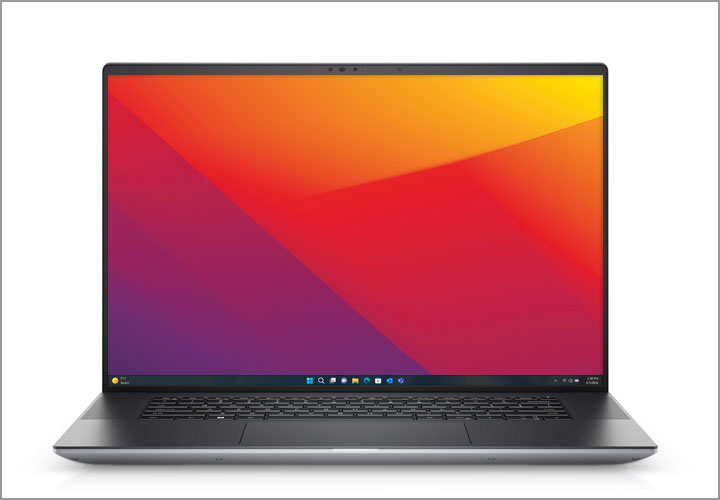

Dell Precision 5680

CoreT i9-13900HX 2.6 Ghz 14/20 Core
64GB
1TB
Nvidia RTX 4000 Ada

Number of TB Ports: 2 (1 for charging)
AJA Desktop Software v.17.1

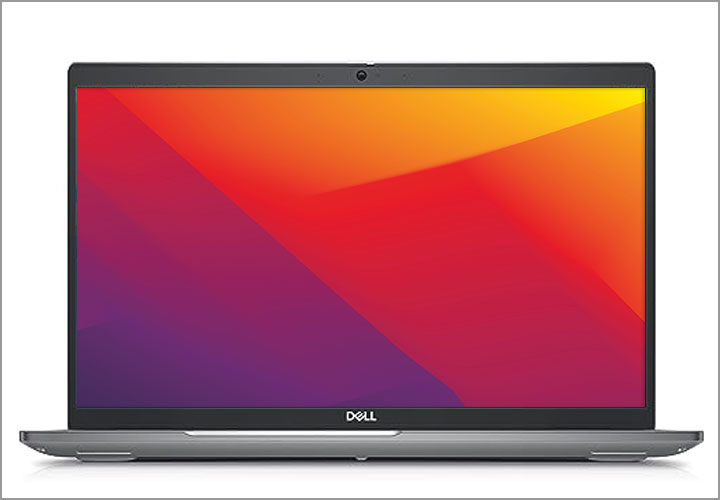

Dell Precision 3581

i7-13800H 2.5 Ghz 14/20 Core
32GB
512GB
Nvidia RTX A500
Intel Iris Xe Graphics

Number of TB Ports: 2 (1 for charging)
AJA Desktop Software v.17.1

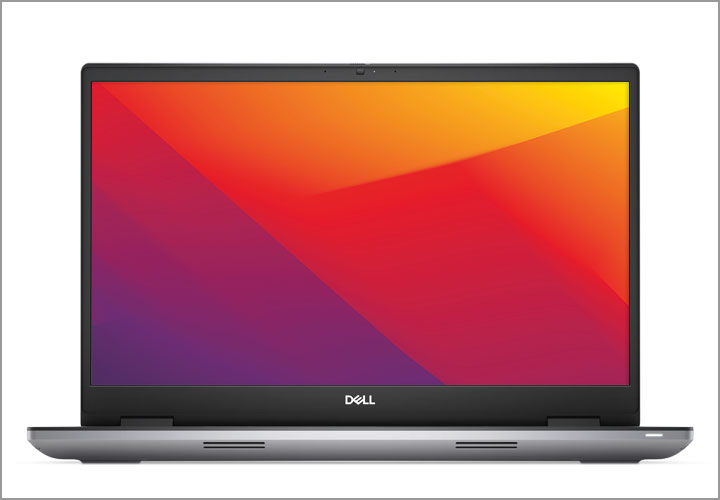

Dell Precision 7770

i7-12850HX 2.1 Ghz 16/24 Core
32GB Ram
1TB M.2
1TB M.2 Data
Nvidia RTX A5500
Intel UHD

Number of TB Ports: 2
AJA Desktop Software v.17.1

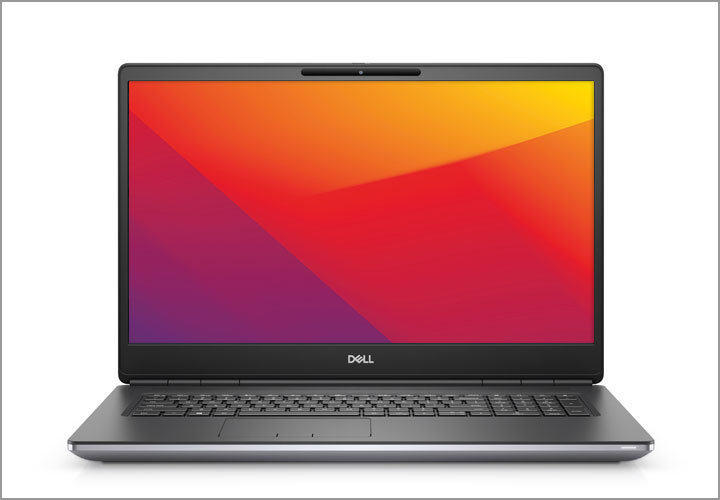

Dell Precision 7760

i7-12850HX 2.1 Ghz 16/24 Core
32GB Ram
1TB M.2
Nvidia RTX A5500
Intel UHD

Number of TB Ports: 2
AJA Desktop Software v.17.1

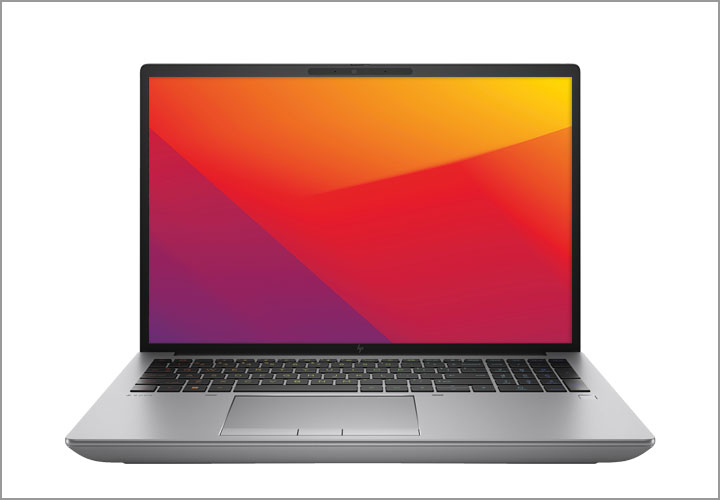

HP ZBook Fury 16 G11

i9-14900HX 2.2Ghz 24/32 Core
32 GB
1TB
Nvidia RTX 5000 ADA
Intel Arc Graphics

Number of TB Ports: 2
AJA Desktop Software v.17.1

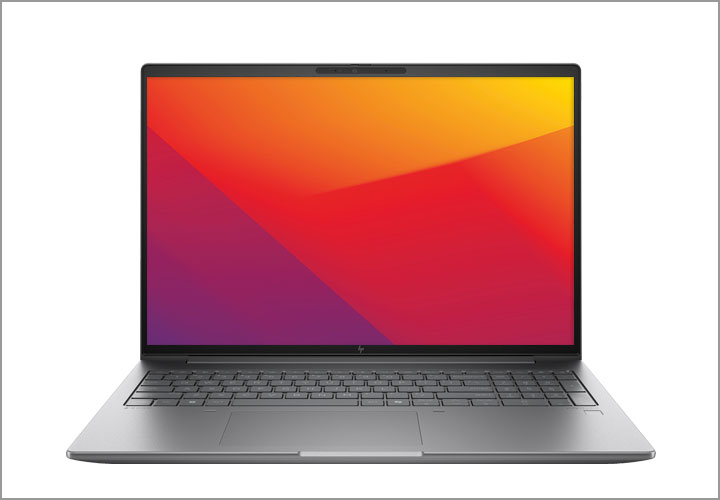

HP ZBook Power 16 G11 A

Ryzen 7 Pro 8945HS 8/16 core
32GB Ram
512GB M.2
Nvidia RTX 3000 Ada
AMD Radeon 780M GPU

Number of TB Ports: 2
AJA Desktop Software v.17.1

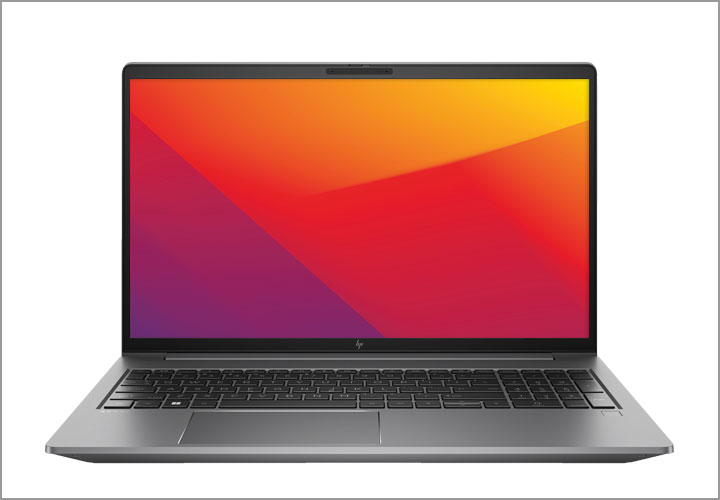

HP ZBook Power 15.6 G10 A

Ryzen 7 Pro 7840HS
32GB Ram
512GB M.2
Nvidia RTX 2000 Ada
AMD Radeon 780M GPU

Number of TB Ports: 1
AJA Desktop Software v.17.1

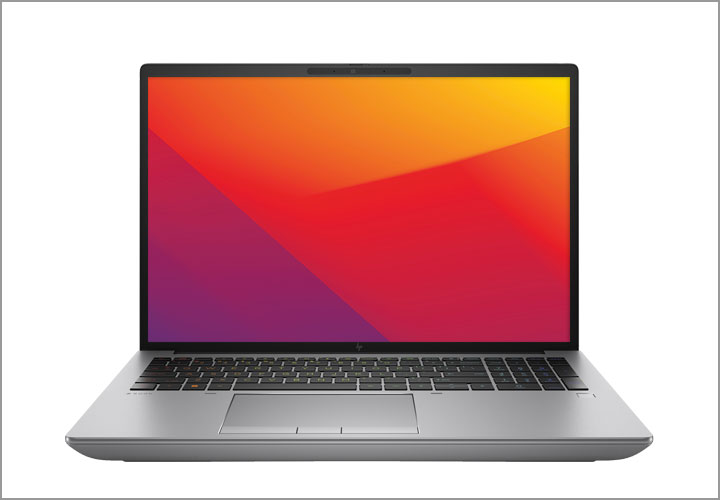

HP ZBook Fury 16 G10

i7-13850HX 2.1 Ghz 20/28 Core
32GB Ram
512GB M.2
Nvidia RTX 3500 Ada
Intel UHD Graphics

Number of TB Ports: 2
AJA Desktop Software v.17.1

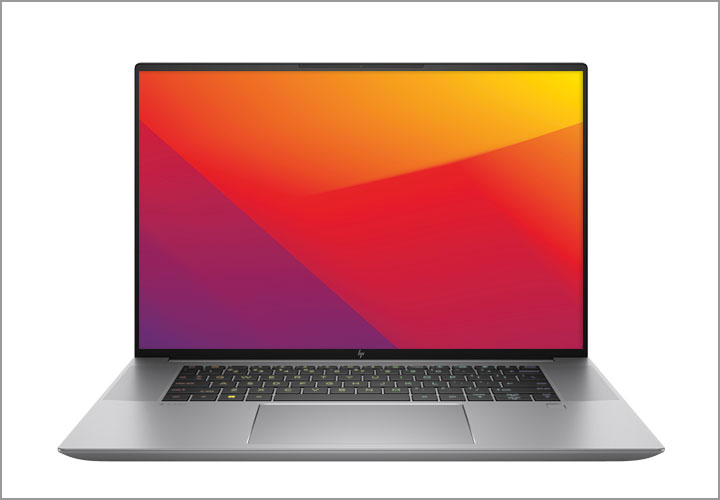

HP ZBook Studio 16 G10

i7-13800H 2.5 Ghz 14/20 Core
32GB Ram
512GB M.2
Nvidia RTX 3000 Ada
Intel Iris Xe

Number of TB Ports: 2
AJA Desktop Software v.17.1

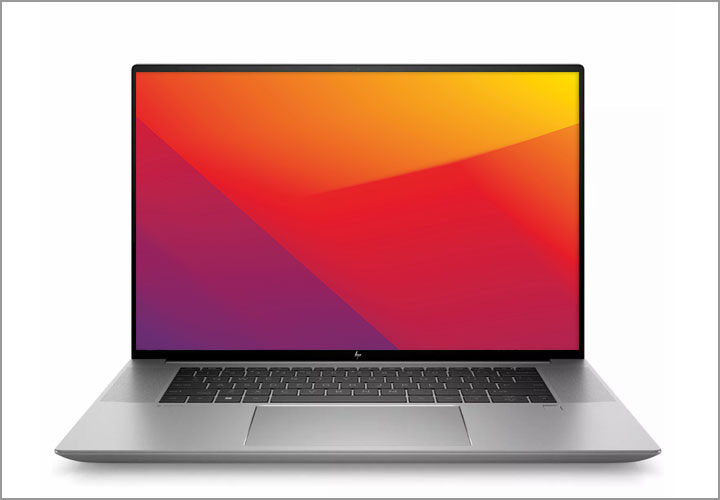

HP ZBook Studio 16 G9

i7-12800H 2.4 Ghz 14/20 Core
32GB Ram
512GB M.2
Nvidia RTX A4500
Intel Iris Xe

Number of TB Ports: 2
AJA Desktop Software v.17.1

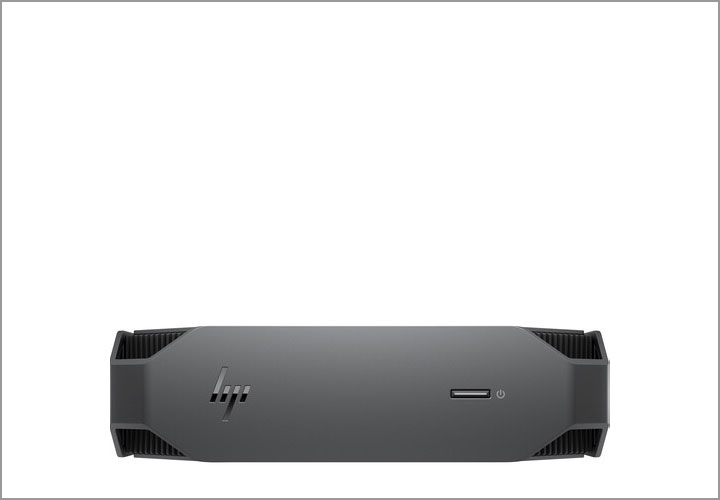

HP Z2 Mini G5

i9-10900 2.81 Ghz 10/20 Core
32GB Ram
512GB M.2
Nvidia T1000

Number of TB Ports: 1
AJA Desktop Software v.17.1

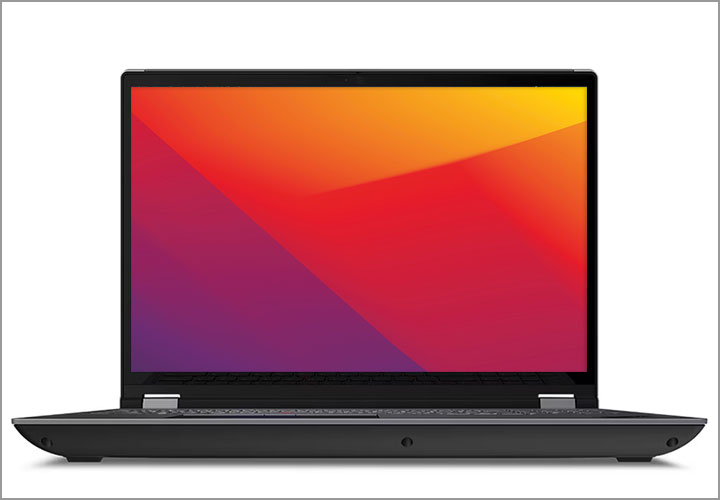

Lenovo P16 Gen1

i9-12950HX 2.3 Ghz 16/24 Core
64GB Ram
1TB M.2
Nvidia RTX A4500
Intel UHD

Number of TB Ports: 2
AJA Desktop Software v.17.1

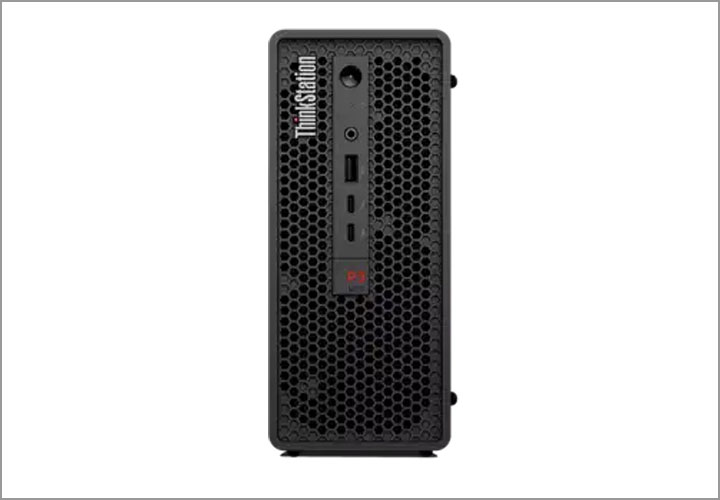

Lenovo P360 Ultra

i9-12900 2.81 Ghz 16/24 Core
32GB Ram
1TB M.2
Nvidia RTX A2000

Number of TB Ports: 2
AJA Desktop Software v.17.1
