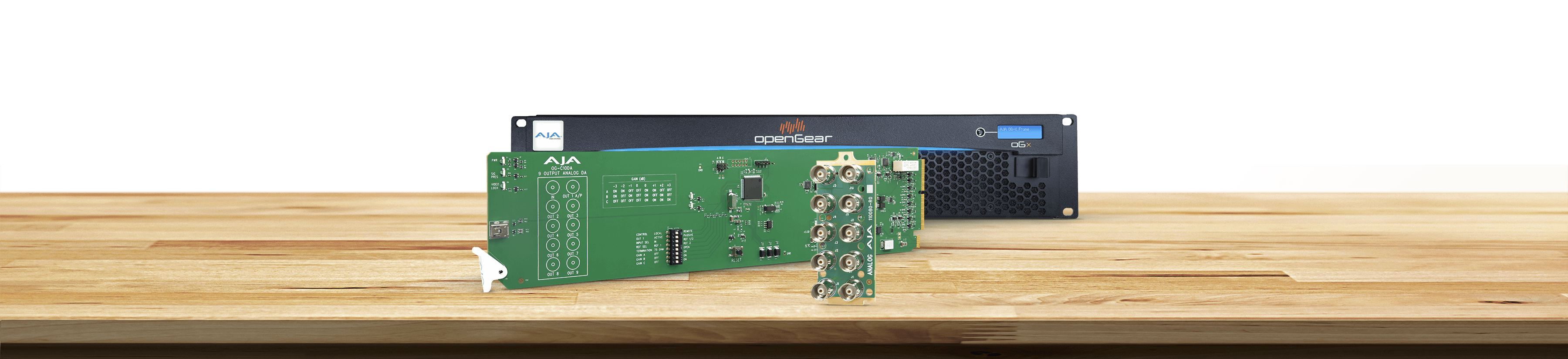

OG-C10DA

OG-C10DA

Analog Video 1x9 openGear Distribution Amplifier

$449 US MSRP*

* Pricing is for US only. International pricing will vary.

OG-C10DA

Overview

Tech Specs

Downloads

openGear Infrastructure

Overview

The OG-C10DA is an openGear 1x9 analog distribution amplifier with support for NTSC and PAL, offering the ability to distribute multiple copies of the incoming signal or extend composite video content with gain adjustment to compensate for long cable runs.

The OG-C10DA can also be used to distribute tri-level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features

  • 1x9 analog distribution amplifier, (1x loop out option)
  • Supports analog NTSC, PAL, blackburst, or tri-level sync
  • Supports AES3-id (digital unbalanced audio) and LTC
  • Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
  • Monitor and control via Ross DashBoard software
  • DIP switches for local control (Loop, Ref In, Termination, and Gain)
  • Input Present LED
  • Power: 6.75 watts max per card
  • Hot-swappable
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
  • Five year warranty

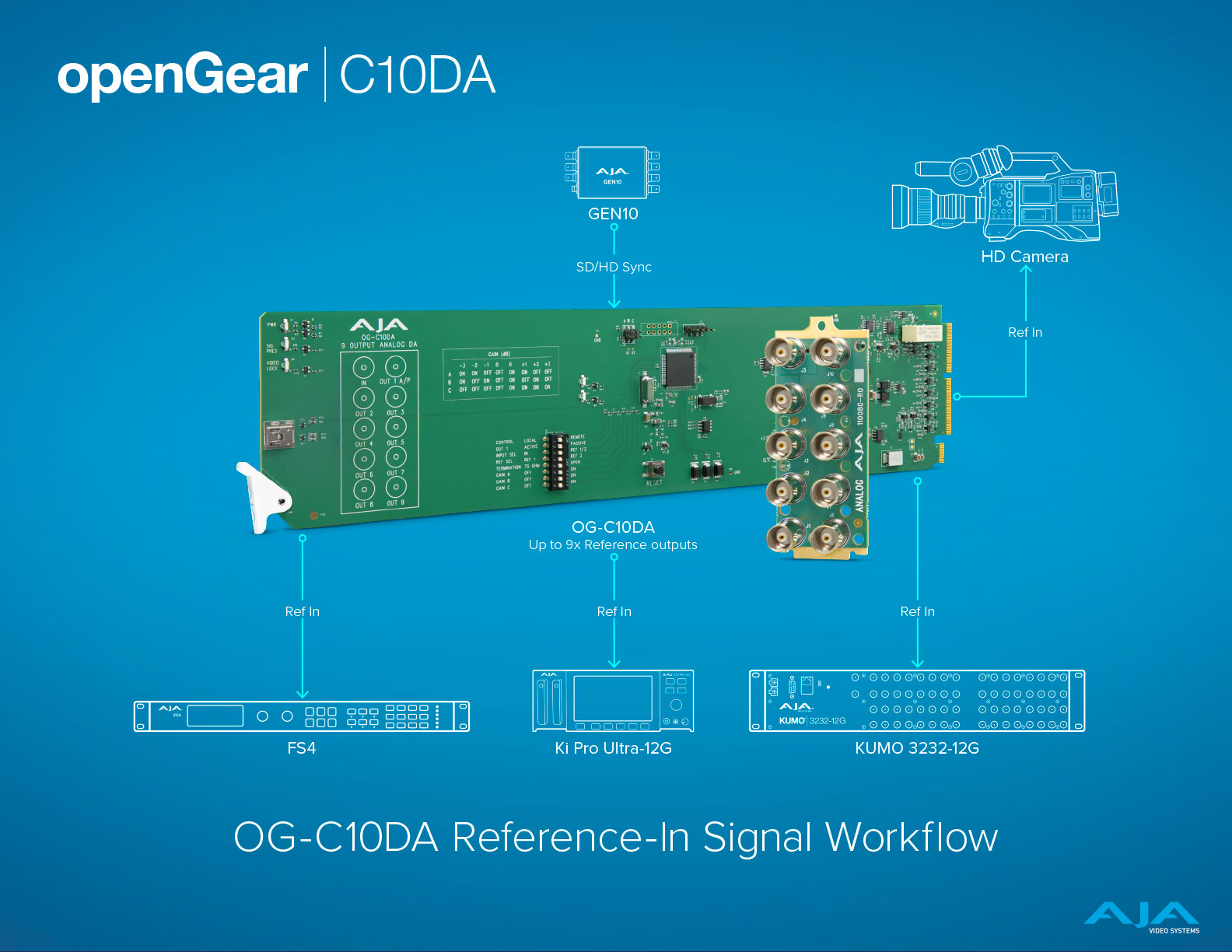

HD Reference Distribution Workflow

Combining the OG-C10DA and the AJA GEN10 Mini-Converter makes a powerful combination to distribute references throughout your facility. This workflow diagram shows how easy it is to keep your facility in sync.

Download Workflow

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix

Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Formats

  • NTSC
  • PAL
  • Bi-level Reference
  • Tri-level Reference
  • AES3-id
  • LTC

Inputs

  • 1x BNC, Analog, Differential

Video Output Digital

  • 1x BNC, Analog, Loop-out Active/Passive
  • 8x BNC, Analog

Termination

  • 75 Ohms or nonterminated

Video Bandwidth

  • 0 – 6 MHz +/- 0.1dB

Gain

  • -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB

Diff Gain

  • 0.15%, not load dependent

Diff Phase

  • 0.1 degree, not load dependent

H/V Tilt

  • < 0.1%

Response Variation

  • < 0.1dB 1 to 9 loads

Coupling

  • DC

Max Common Mode Signal

  • 8Vp-p

Return Loss

  • > 15dB to 6 MHz all inputs and outputs

Output Isolation

  • >40dB

User Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux
  • Local/Remote Control
  • Loop-out Control
  • Input Selection
  • Termination
  • Gain

Size (w x d x h)

  • openGear standard form factor, front slot and rear card
  • Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 6.75 watts max per card

Environment

  • Safe Operating Temperature Range: 0C to 40C (32F to 104F)
  • Safe Storage Temperature Range (power OFF): -40C to 60C (-40F to 140F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000m (<10,000ft)
